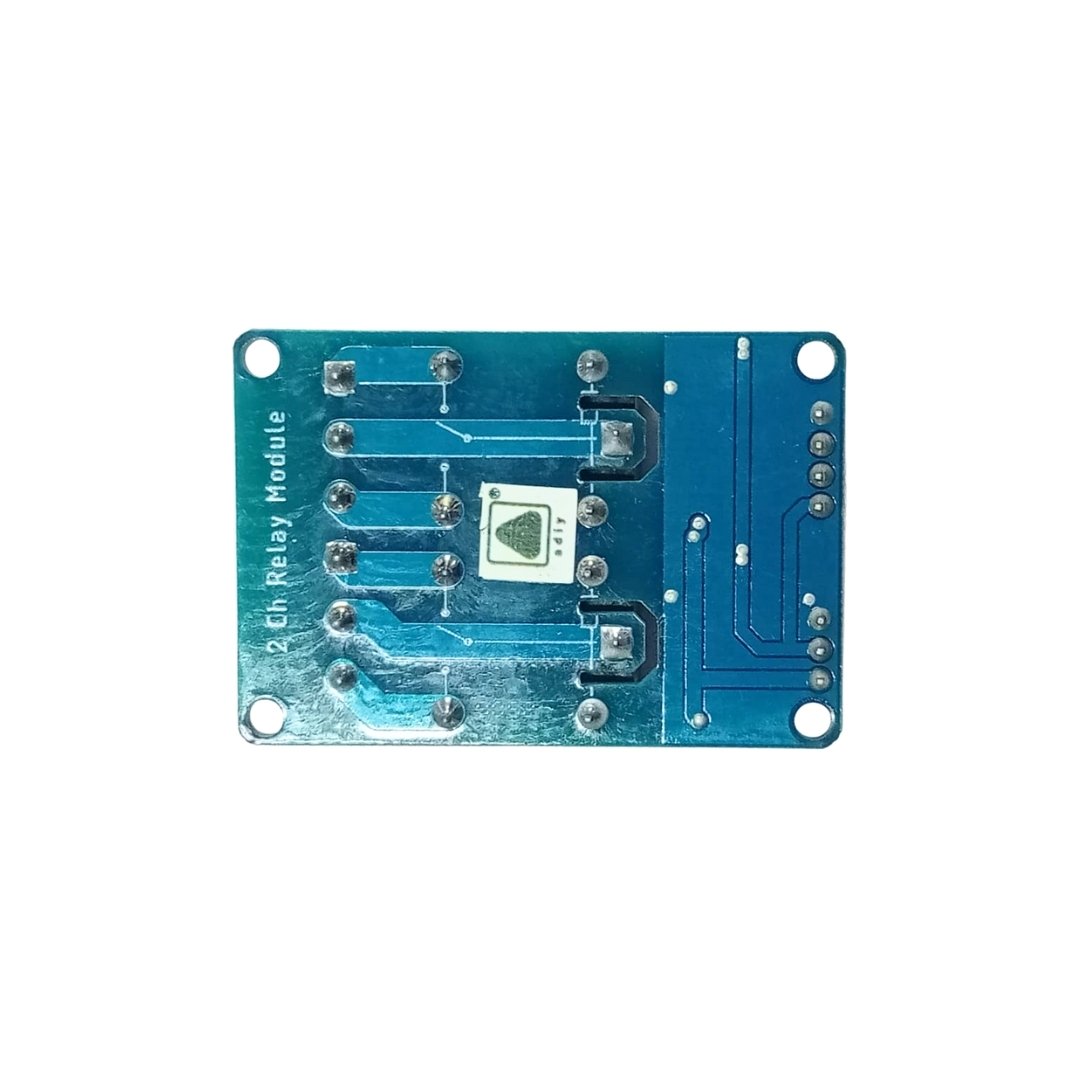

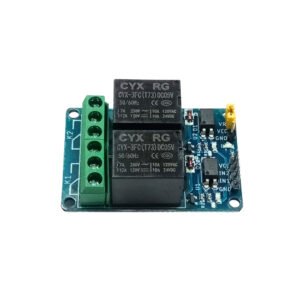

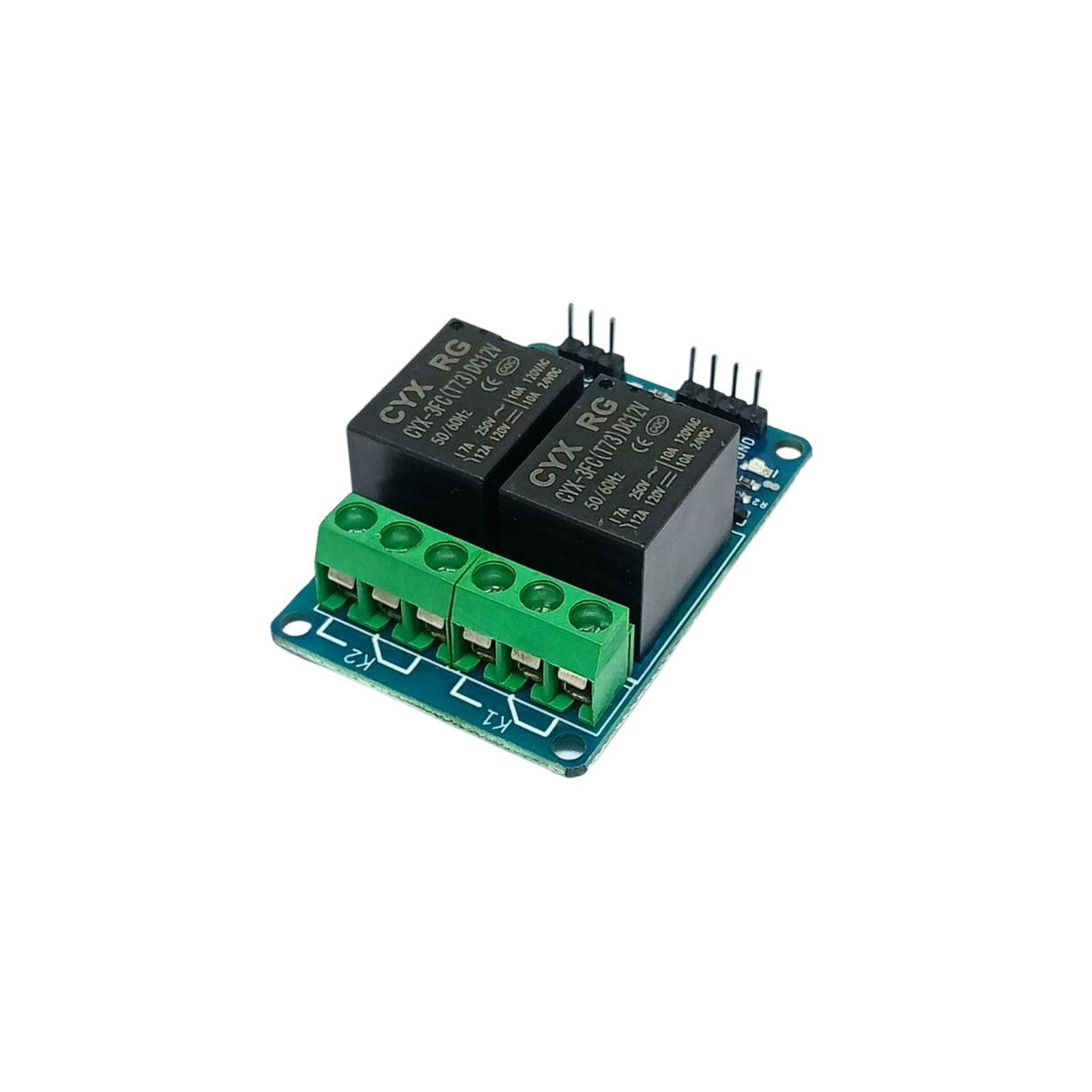

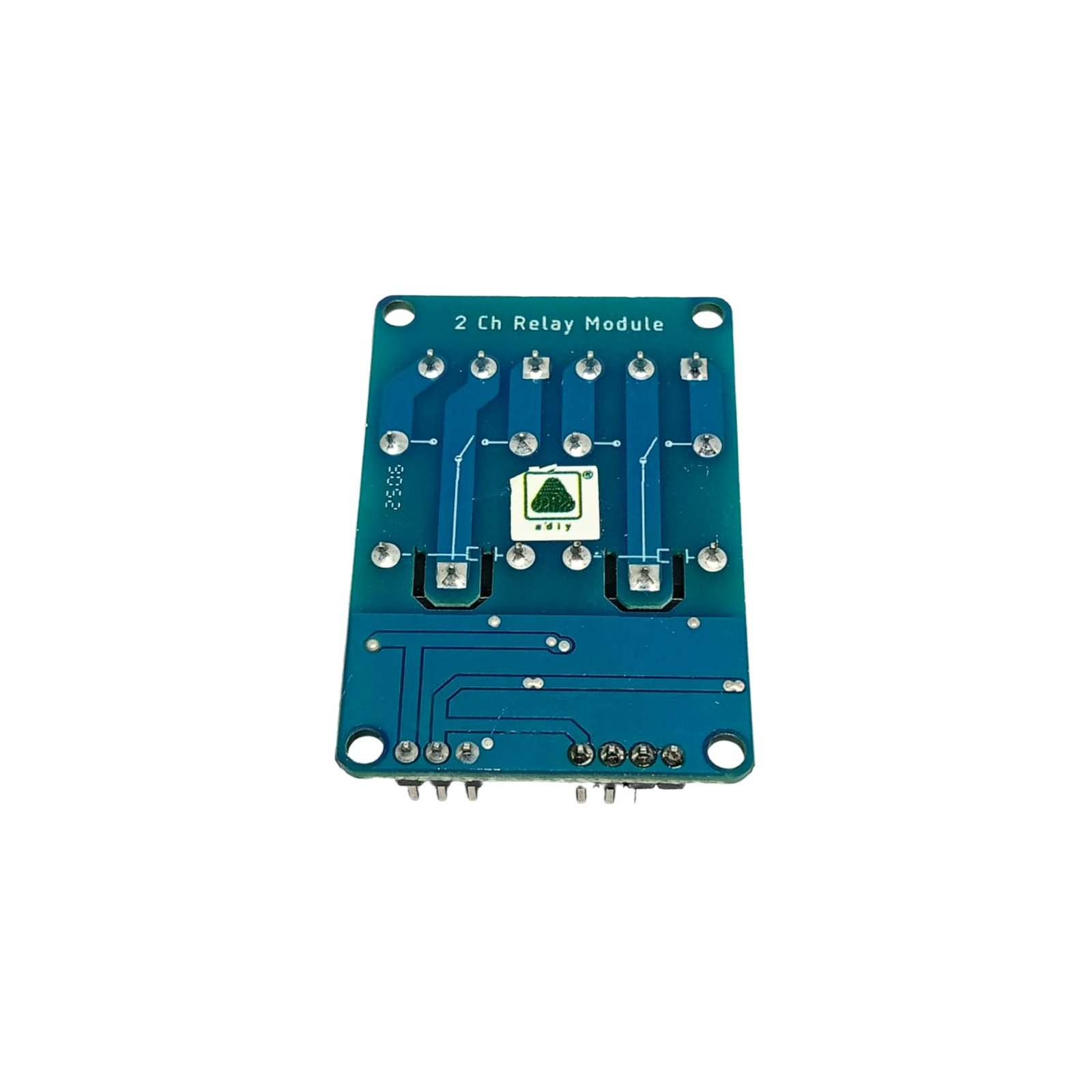

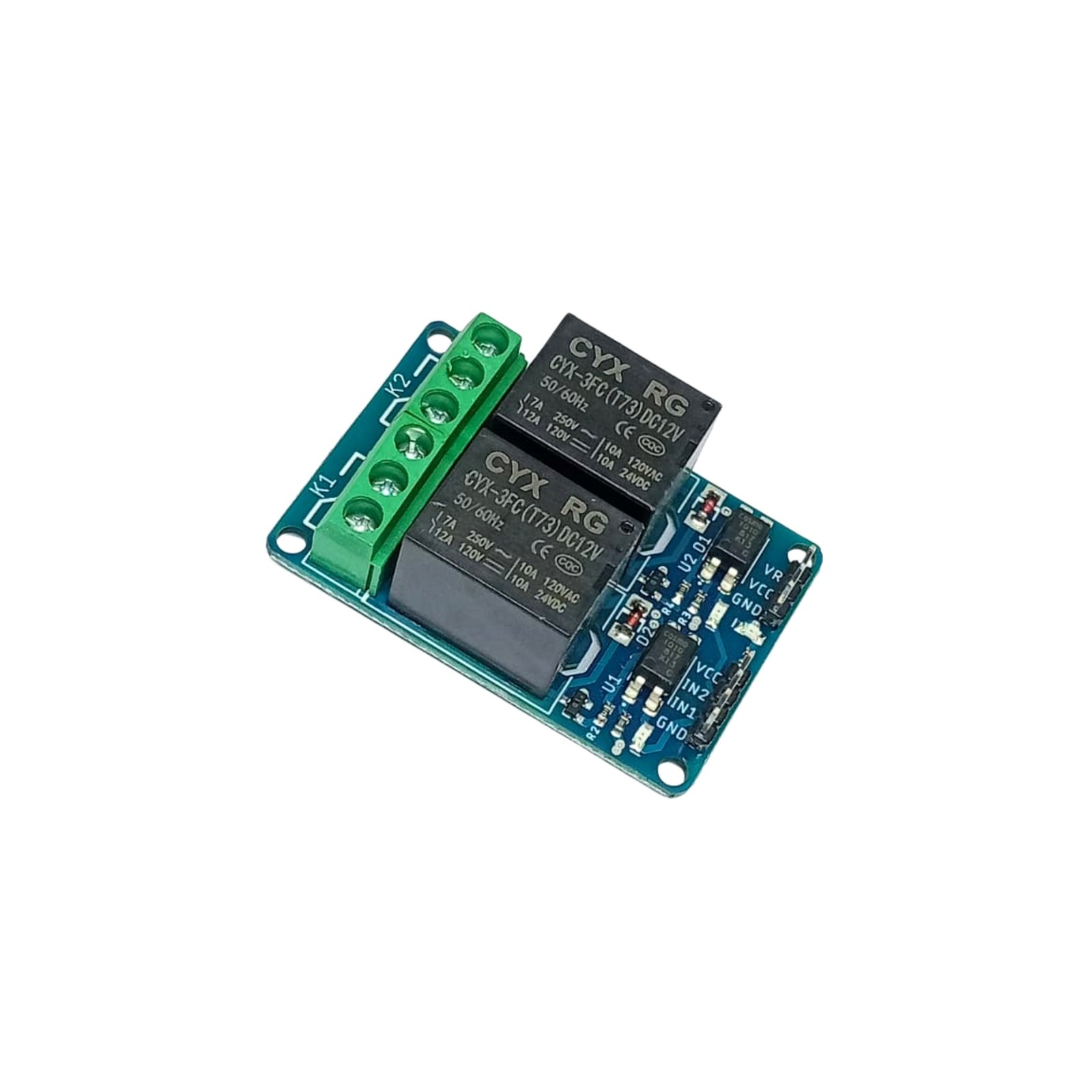

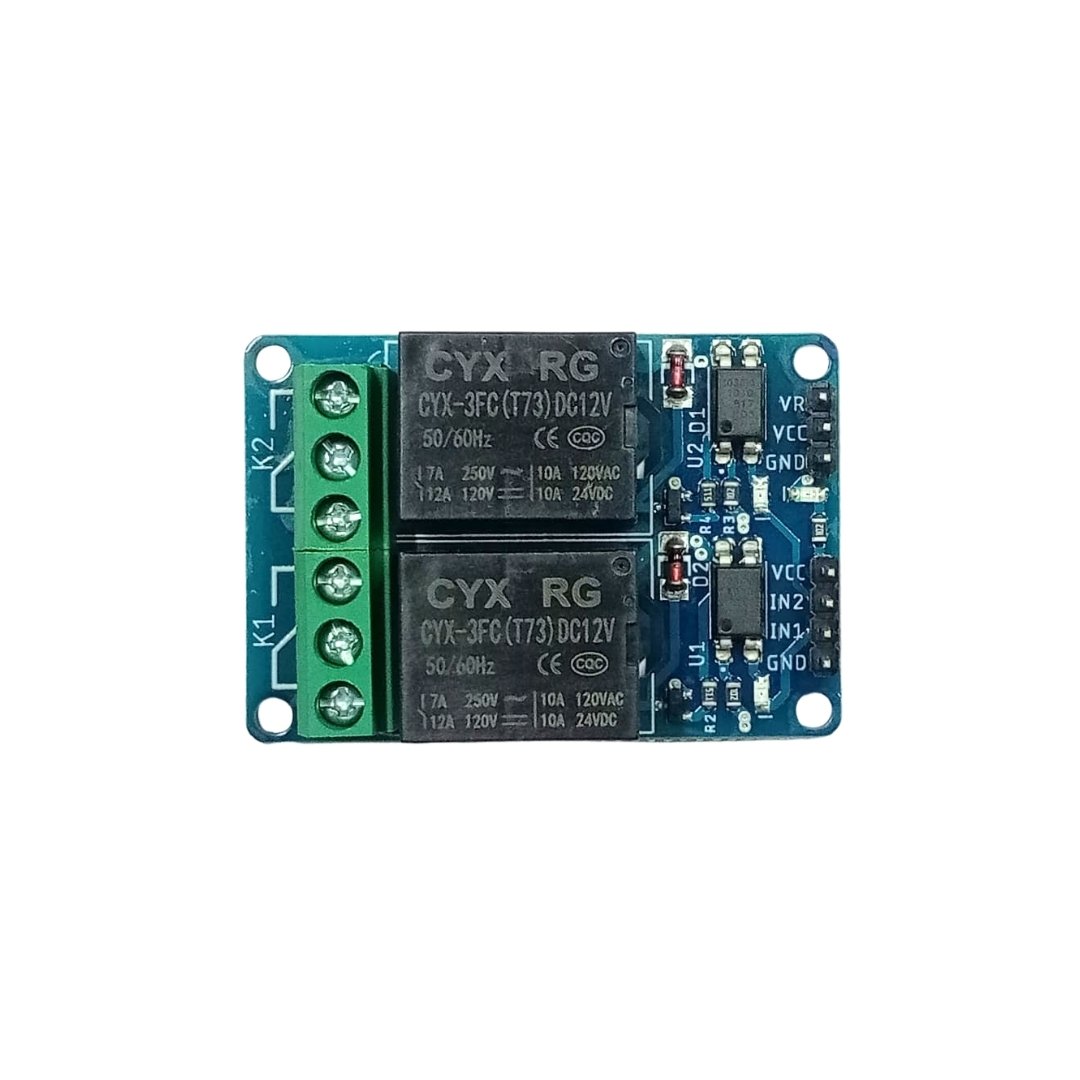

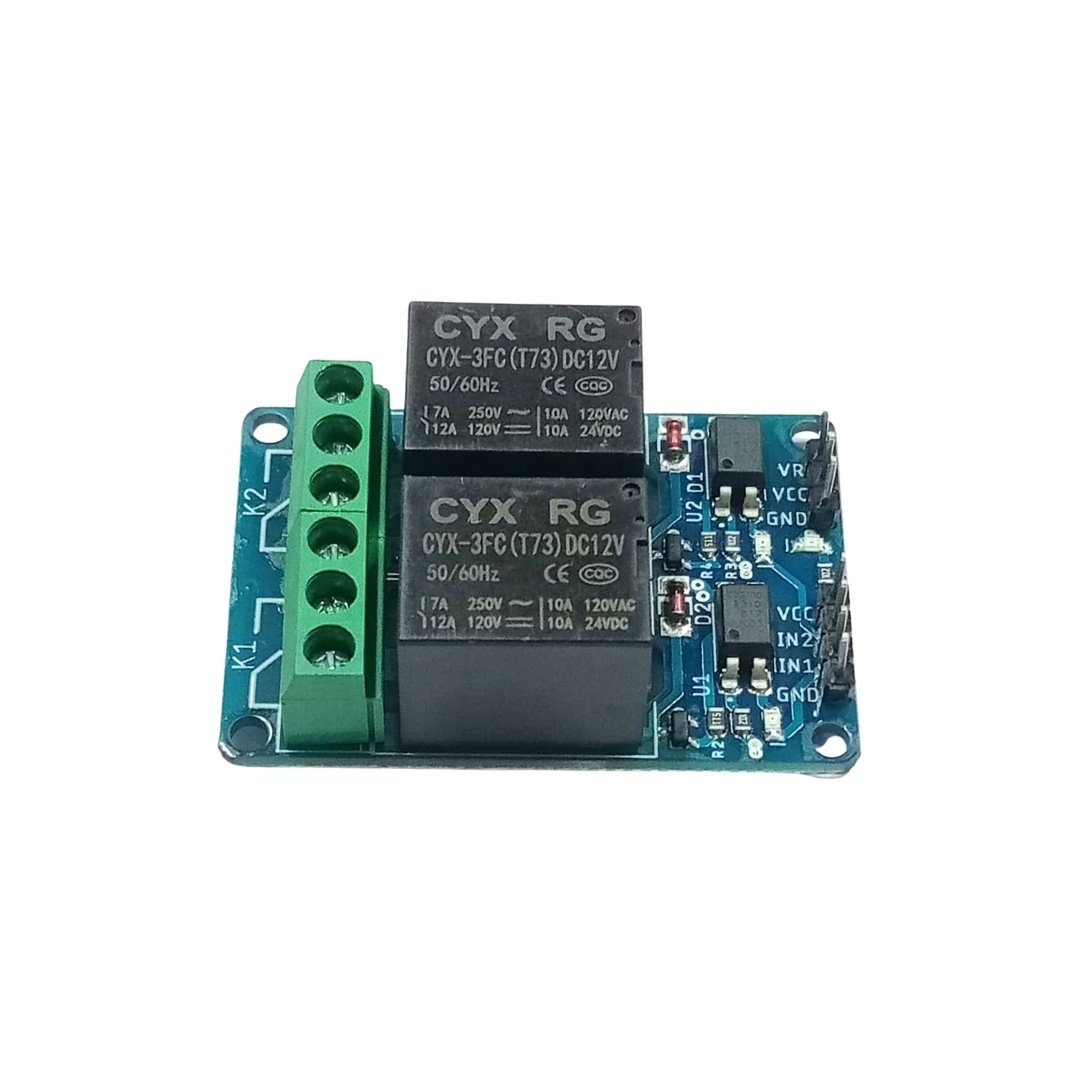

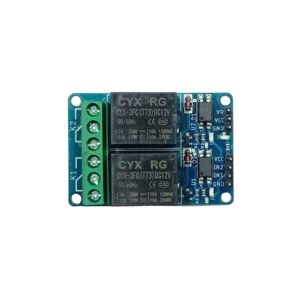

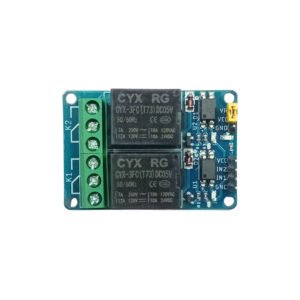

2 Channel Relay Board 12V

(Including GST)

2 Channel 12V Relay Module with Optocoupler by ADIY is an interface board and can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on. With digital outputs to control larger loads and devices like AC or DC Motors, electromagnets, solenoids, and incandescent light bulbs.

This module from ADIY is designed to be integrated with 2 relays that it is capable of controlling 2 relays. The relay shield uses a high-quality relay with a rated load of 10A/250VAC,10A/125VAC, and 10A/28VDC.

47 People watching this product now!

SKU: A132811 Category: Relay Boards

Description

This 2 Channel 12V Relay Module with Optocoupler from ADIY meets the safety standard as control areas and load areas have the isolation groove. Optical coupling isolation module. The triggering of the 2 Road/Channel Relay Module is reliable and more stable. The double FR – 4 circuit board design, is a high-end SMT process. It has power and relay operation instructions. Relay terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy. The inputs of the 2 Channel 12V Relay Module are isolated to protect any delicate control circuitry. The use of such a high-voltage relay eliminates the risk of heating up of the relay as an electromechanical relay limit the current consumption in accordance with a voltage rating.

Features: 2 Channel 12V Relay Module with Optocoupler

Equipped with high-current relay 10A@250VAC / 10A@30VDC
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
A freewheeling diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED status indicators to indicate the relay ON/OFF status
Mounting holes provided
Signal input with a high-level signal, the common and often start conduction;
The relay can directly control all kinds of equipment and load;
One often opened a normally closed contact;
Blue KF301 terminal line is more convenient.

Module interface: 2 Channel 12V Relay Module

The positive (according to the relay voltage VCC: connect power supply)
GND: connect power negative
IN1: relay module (effective) high-level trigger signal trigger end
IN2: relay module (effective) high-level trigger signal trigger end

Meaning of High level and Low-level

A high-level trigger refers to using the anode voltage at the VCC connection way of a trigger and triggers the end when the trigger side has a positive voltage or to trigger voltage when the relay is off.
Low-level trigger refers to using the negative voltage at the GND connection way of a trigger and triggers the end when the trigger side has 0 v low voltage or voltage to can trigger, the relay is off.

Package Includes :

1 x 2 Road/Channel Relay Module (with light coupling) 12V
