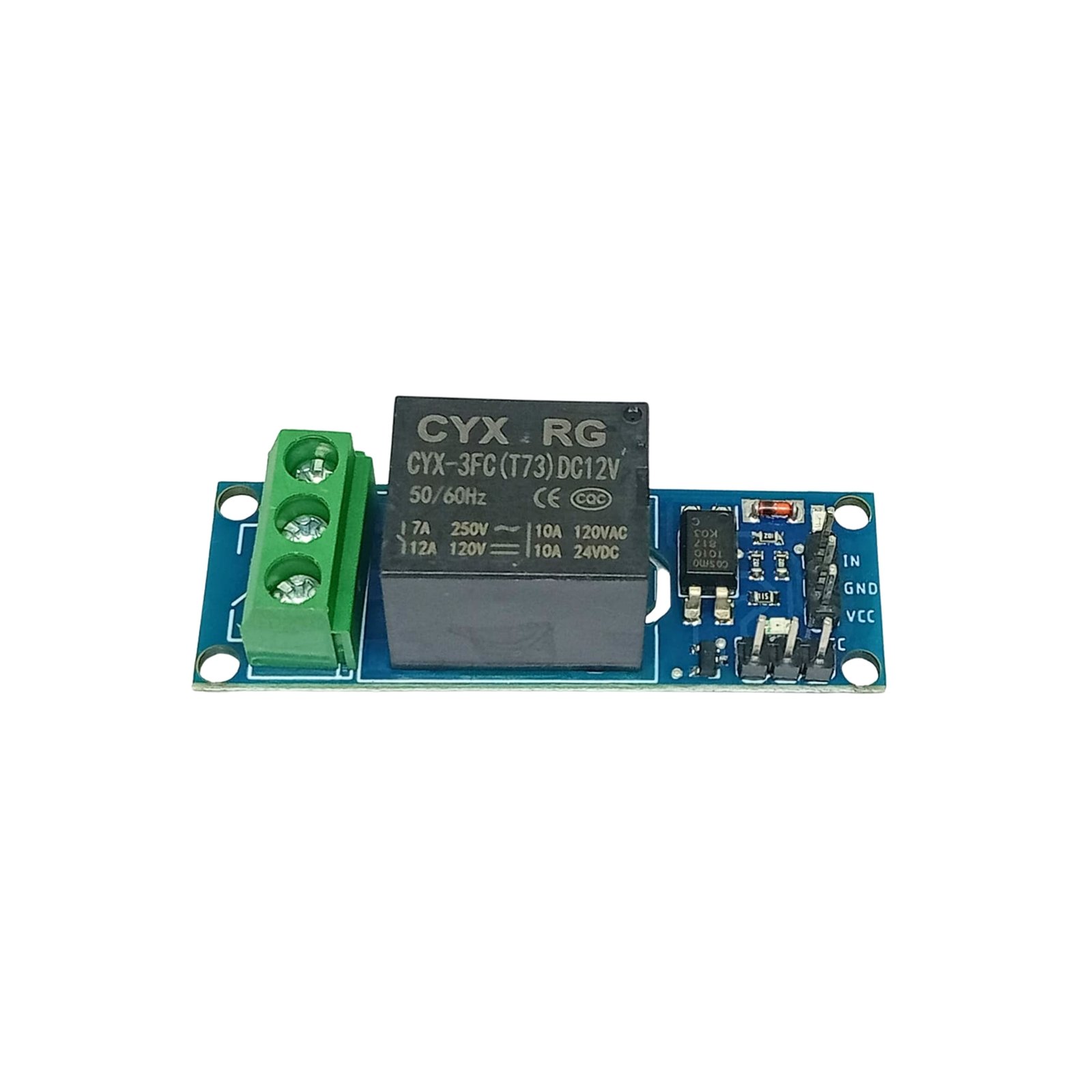

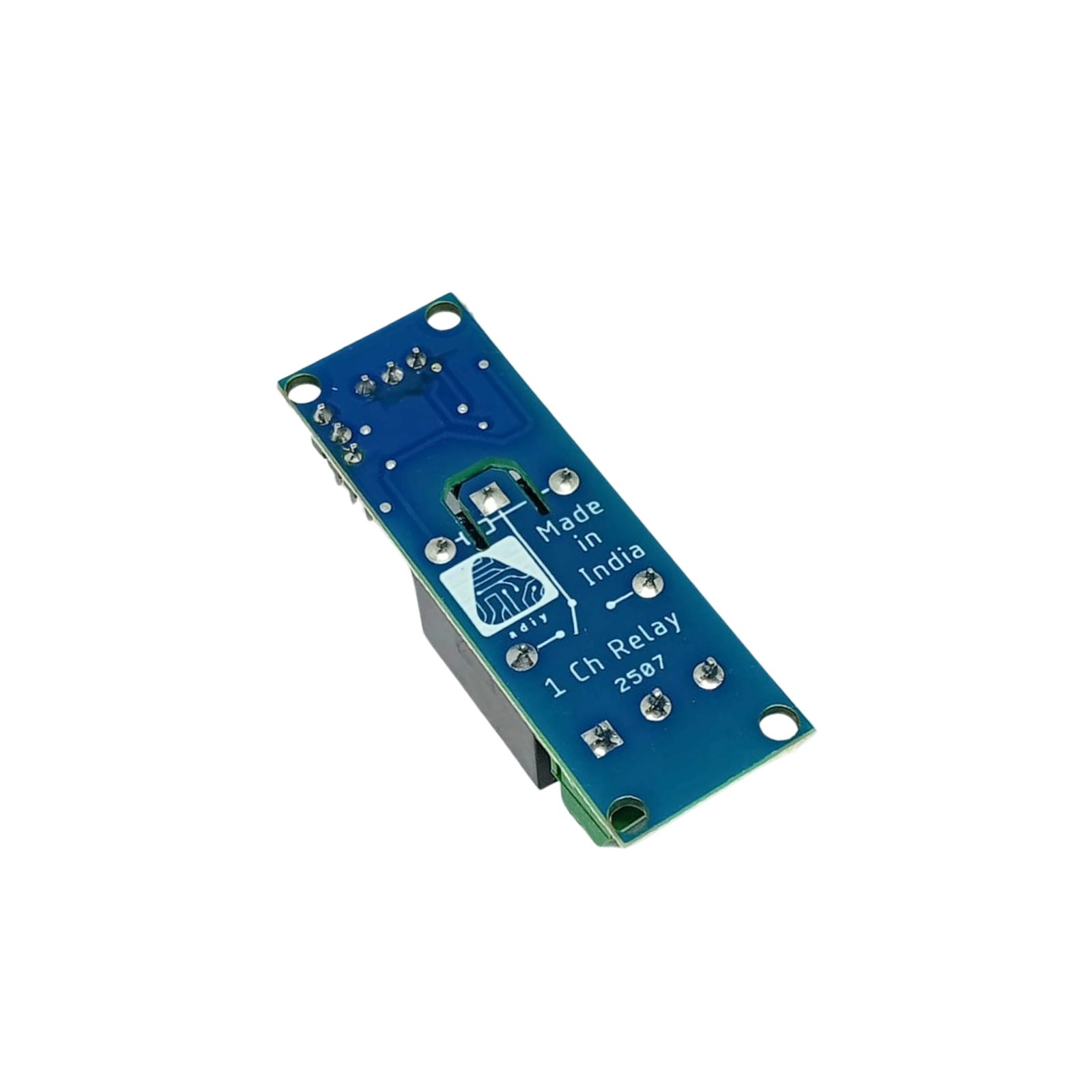

1 Channel Relay Board With Optocoupler 12V

12V 1-Channel Relay Module with Optocoupler by ADIY is a Bidirectional isolation type 1-Channel relay control module, according to user needs, you can choose a high or low level to control the relay pull. The module uses a genuine high-quality power relay, high-quality subminiature package optocoupler, high power high voltage transistor, red and blue signal indicator, and layout board considered comprehensive, stable performance, and can be widely used in a variety of power control applications.

95 People watching this product now!

Description

Features :1 Channel 12V Relay Module with Optocoupler

Equipped with high-current relay 10A@250VAC / 10A@30VDC
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc.

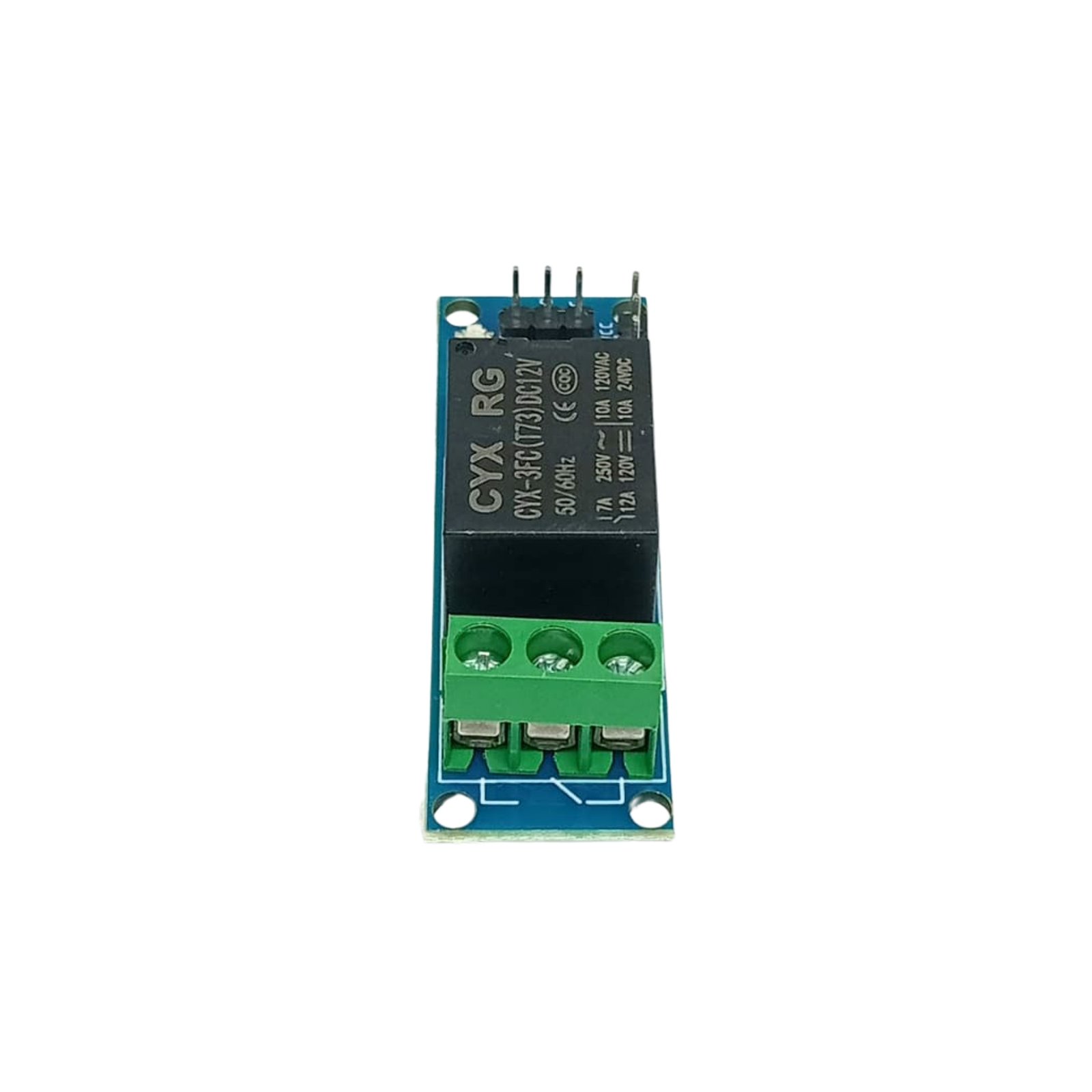

High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
A freewheeling diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED status indicators to indicate the relay ON/OFF status
Mounting holes provided
Signal input with a high-level signal, the common and often start conduction;
The relay can directly control all kinds of equipment and load;
One often opened a normally closed contact;
Blue KF301 terminal line more convenient.

Specification: 1 Channel 12V Relay Module with Optocoupler

Working voltage: DC12V,
Working Current: 12V Version
the working state of 50mA (Relay without pull/release action, less than 15mA). ;
The relay high-level pull-in, the module contains current-limiting resistance, a high level can be DC +, microcontroller I / O port can be set high;
Fault-tolerant design, even if the control line is broken, the relay will not move;
Power indicator (red), 1 relay status indicator (blue)
User-friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient
With four fixing bolt holes, easy to install

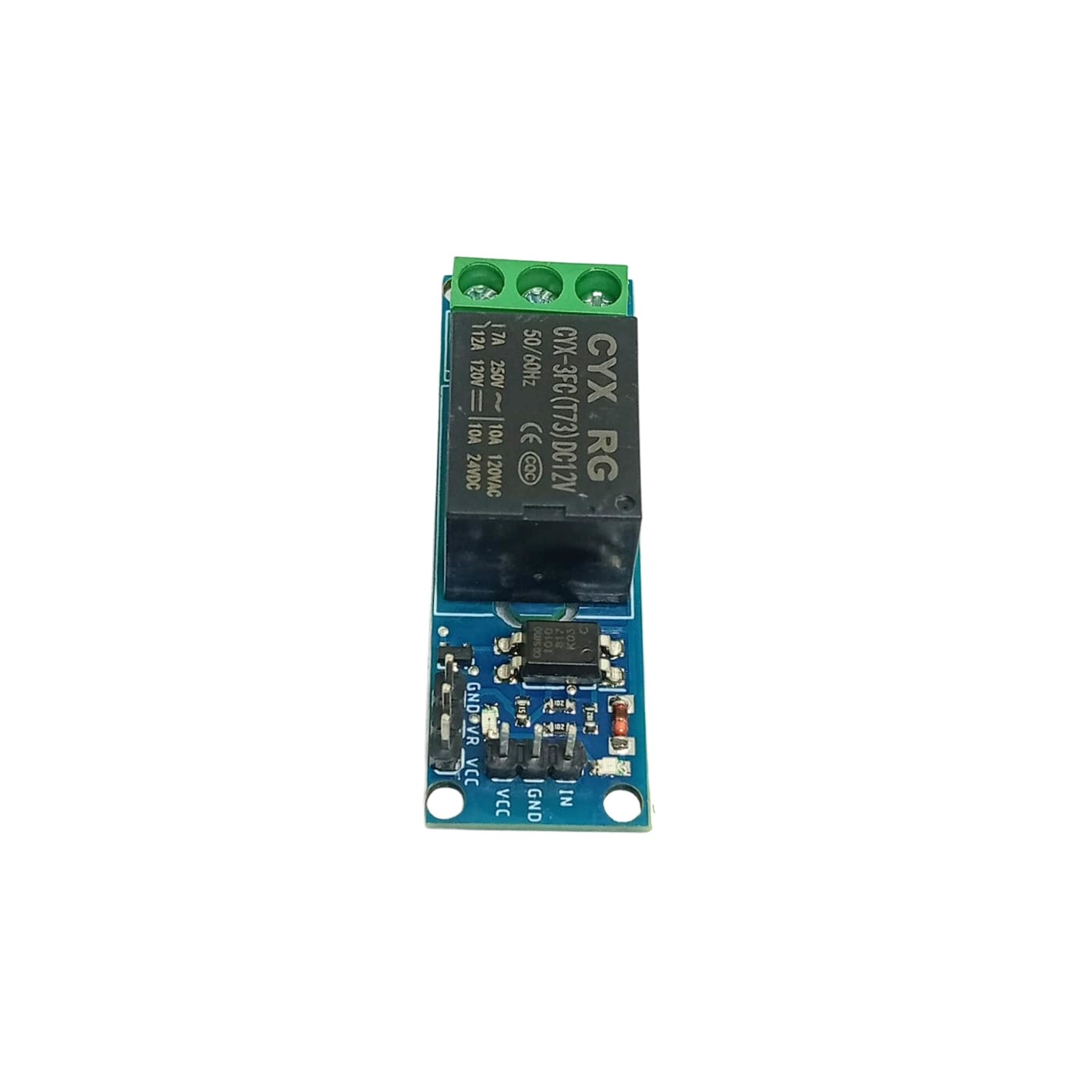

Module interface:1 Channel 12V Relay Module with Optocoupler

DC +: positive DC power supply;
DC-: DC negative supply;
VERF: photoelectric isolation control terminal reference ground, this signal should be connected to the user control panel power supply negative;
CH1: relay control interface, the high level (relative to VERF) corresponding relay pull;

NOTE:

An isolated relay module is to adapt to the electromagnetic environment is relatively harsh or high signal requirements of the occasion, if you want to achieve full isolation effect, the user control panel power (that is connected to the VERF reference power) and the relay module power supply (DC + / DC-) should be separated, if the two power supply ground, it is not completely isolated effect.

Relay output:
