Description

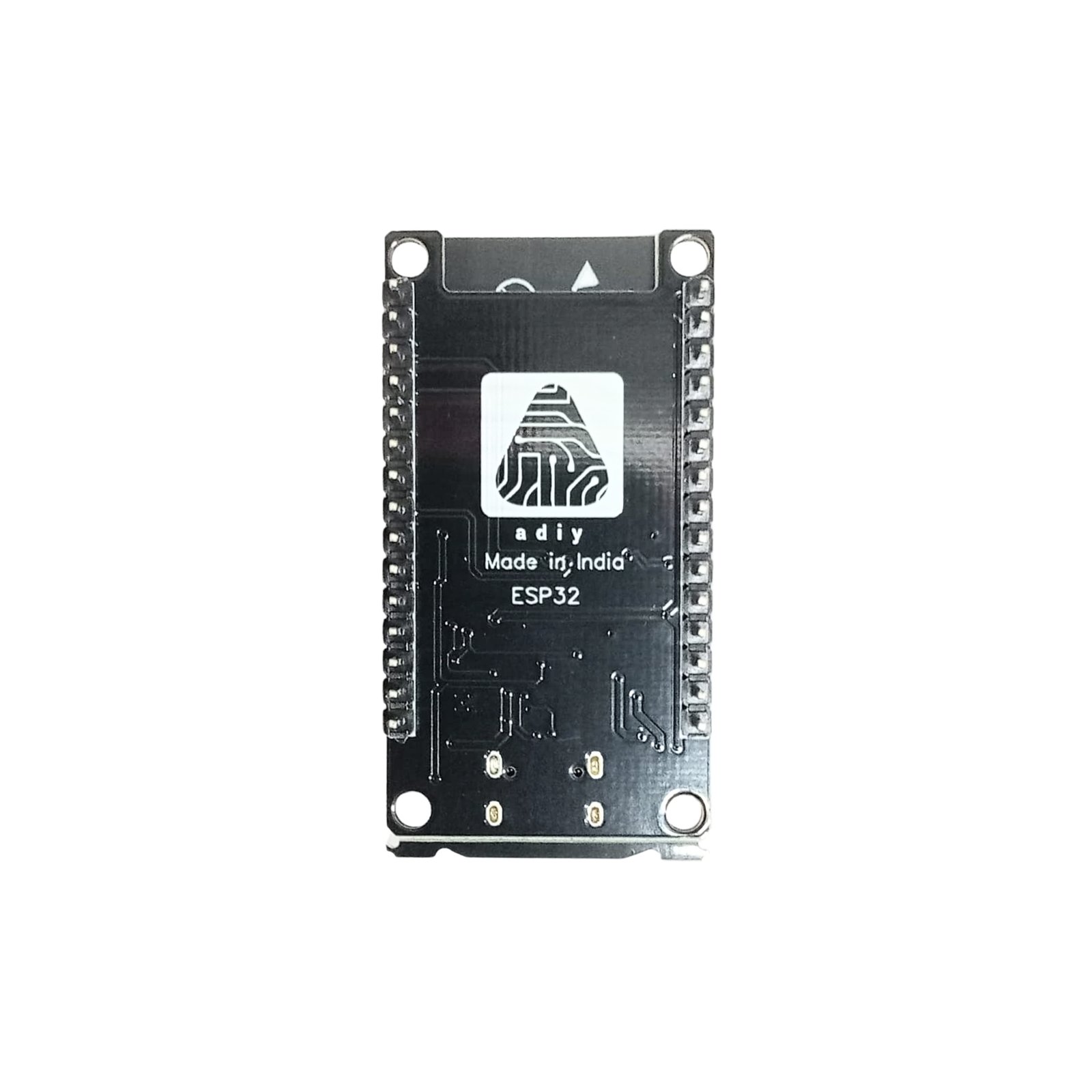

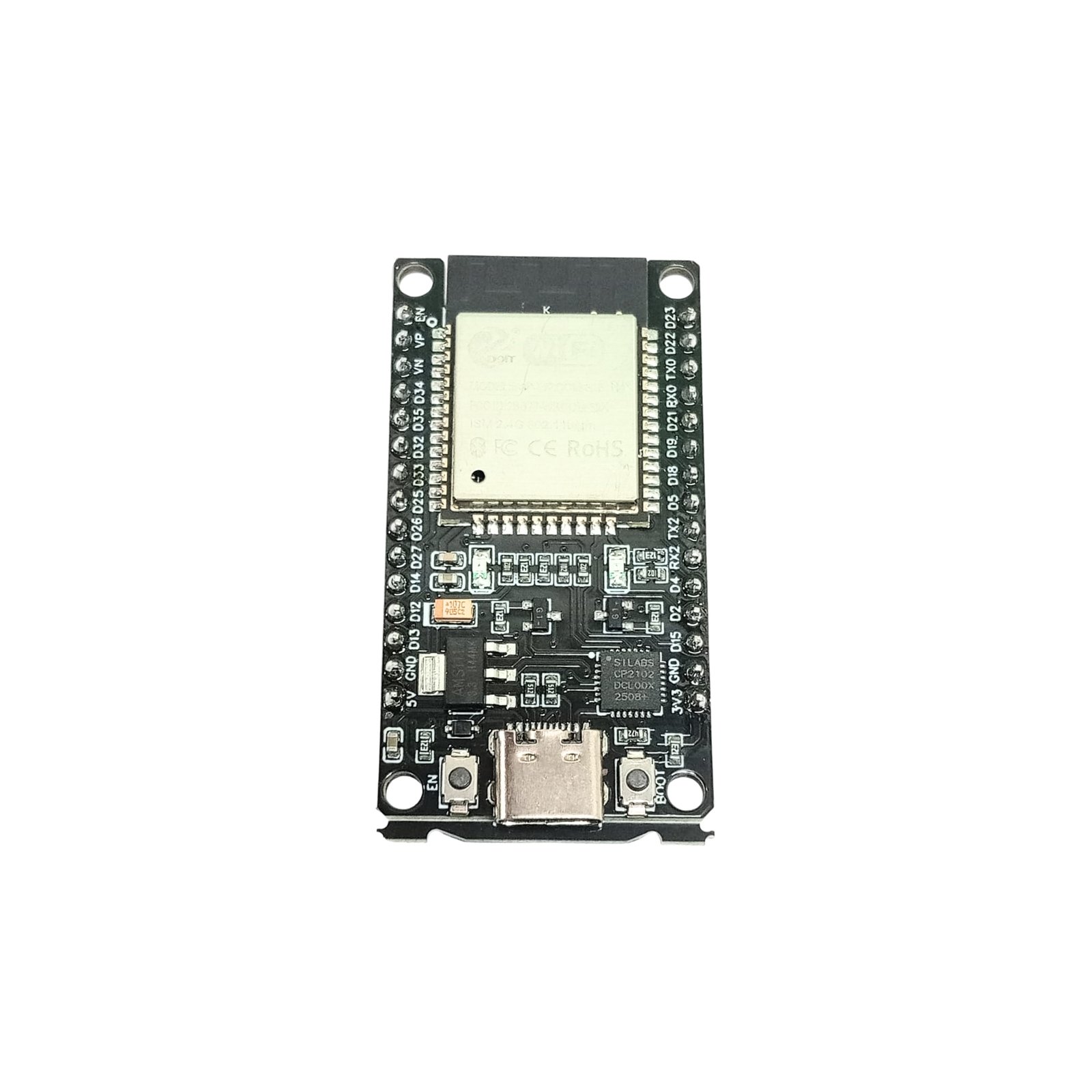

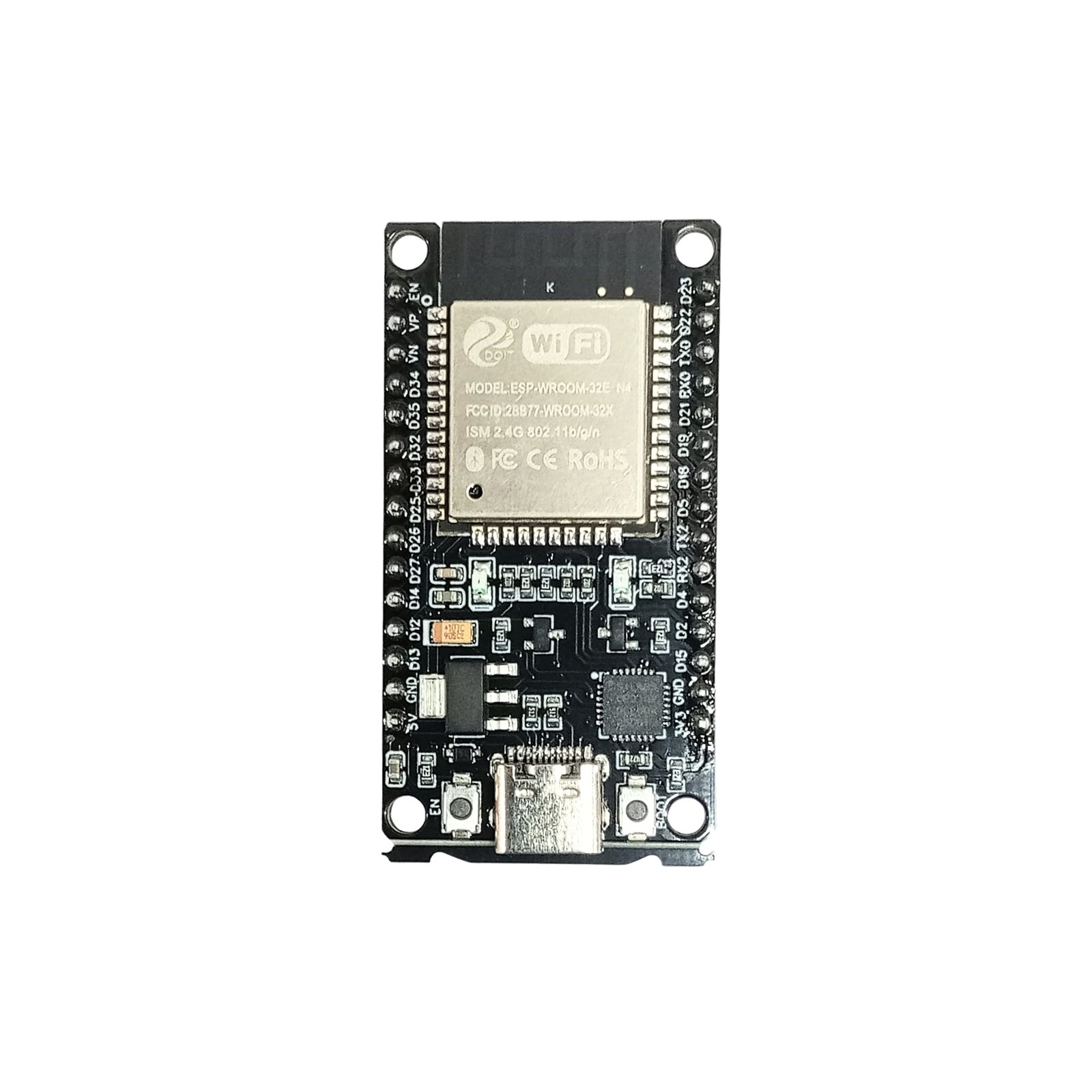

ESP32 Development Board (ESP32-WROOM-32E Module)
Discover the power and versatility of the ESP32 Development Board, featuring the ESP32-WROOM-32E Module from Espressif. This advanced board combines Wi-Fi, Bluetooth, and BLE capabilities, making it perfect for a wide range of applications.
Key Features:
- Microcontroller: ESP32 series, 32-bit dual-core MCU, ultra-low power, built on advanced 40 nm technology.
- Connectivity: Supports 802.11 b/g/n Wi-Fi, Bluetooth v4.2 BR/EDR, and BLE.
- Memory: Available with 4/8/16 MB Flash and up to 512 KB RAM.
- Operating Frequency: Up to 240 MHz.
- Dual Wireless Modes: Supports AP, STA, and AP+STA modes for flexible IoT applications.
- Compact 30-Pin Design: Ensures easy integration into various products.
- Robust Connectivity: Equipped with reliable Wi-Fi and Bluetooth capabilities.
Design and Interface:
- Pin Configuration: 30-pin board with accessible interfaces.
- Ports: Type-C USB connector and USB to UART bridge.
- User Controls: Reset and boot mode buttons.
- Power Management: Equipped with an LDO regulator.
- GPIO Access: Most essential GPIOs are readily accessible.
Versatility and Ease of Use:
- Rapid Integration: Quickly add high-capacity Wi-Fi, Bluetooth, or BLE to existing projects.
- Programming Support: Compatible with Lua scripting language for easier development.
This board seamlessly integrates into various projects, offering robust connectivity and flexibility. Its powerful features and ease of use make it a perfect choice for developers aiming to innovate and create advanced IoT solutions.
Additional Highlights:
- Ease of Development: Compatible with Lua programming, making it user-friendly for both beginners and experts.
- Smooth Computer Connectivity: Features a CP2102 USB-UART bridge for effortless connection with your computer.
At the heart of this development board is the powerful ESP32 chip, designed for scalability and adaptability. It boasts dual CPU cores, adjustable clock frequencies, and a rich set of peripherals, including touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C. Connect to your devices via Bluetooth or Wi-Fi, and enjoy a wide physical range and direct internet connection. With power consumption under 5µA, it’s perfect for wearable electronics and battery-powered applications.
Take your IoT projects to the next level with this exceptional board.
ESP32 Development Board Details
The ESP32 Development Board is based on the ESP32-WROOM-32E Module, which includes the ESP32 series microcontroller from Espressif. This Wi-Fi + Bluetooth + BLE development board features a 32-bit dual-core MCU with ultra-low power consumption, built on advanced 40 nm technology.
- Wi-Fi Protocol: 802.11 b/g/n (802.11n up to 150 Mbps)
- Bluetooth Protocols: Bluetooth v4.2 BR/EDR and Bluetooth LE
- Memory: Integrated 4/8/16 MB Flash, up to 512 KB RAM
- Frequency: Operates up to 240 MHz
- Pins: 30-pin design with accessible interfaces
- Ports: Type-C USB connector, USB to UART Bridge
- Controls: Reset and boot mode buttons
- Power: LDO regulator, operates on 3.0V ~ 3.6V (Typical 3.3V)
- Operating Current: Average 80 mA
- Antenna: On-board PCB antenna
- ROM: 448 KB
- SRAM: 520 KB
- Crystal: 40 MHz
- SPI Flash: 4/8/16 MB
- Temperature Range: –40 °C ~ +85 °C
Module Interfaces:Nodemcu ESP32-WROOM-32E Board
- SD card
- UART
- SPI
- SDIO
- I2C
- LED PWM
- Motor PWM
- I2S
- IR
- Pulse counter
- GPIO
- Capacitive touch sensor
- ADC
- DAC
- Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)
Applications:Nodemcu ESP32-WROOM-32E Board
- Smart Home and Agriculture
- Industrial Automation
- Health Care
- Consumer Electronics
- Low-power IoT Sensor Hubs and IoT Data Loggers
- Camera for Speech, Video, and Image Streaming
- SDIO Wi-Fi + Bluetooth Networking Card
- Touch and Proximity Sensing
Notice:
- ESP32-WROOM-32E with 4/8/16 MB flash is available for custom order.
- ESP32-WROOM-32D with a high-temperature range (–40 °C ~ +105 °C) option is available for custom order. 4 MB SPI flash is supported on the high-temperature range version.
Enhance your projects with the powerful and flexible ESP32 Development Board, designed for innovative IoT solutions.
