Name: ADIY GSM EC200U 4G/2G GNSS LM39302 Board
SKU: 19347
Price: 1799.00 INR
Availability: InStock

ADIY GSM EC200U 4G/2G GNSS LM39302 Board

(Including GST)

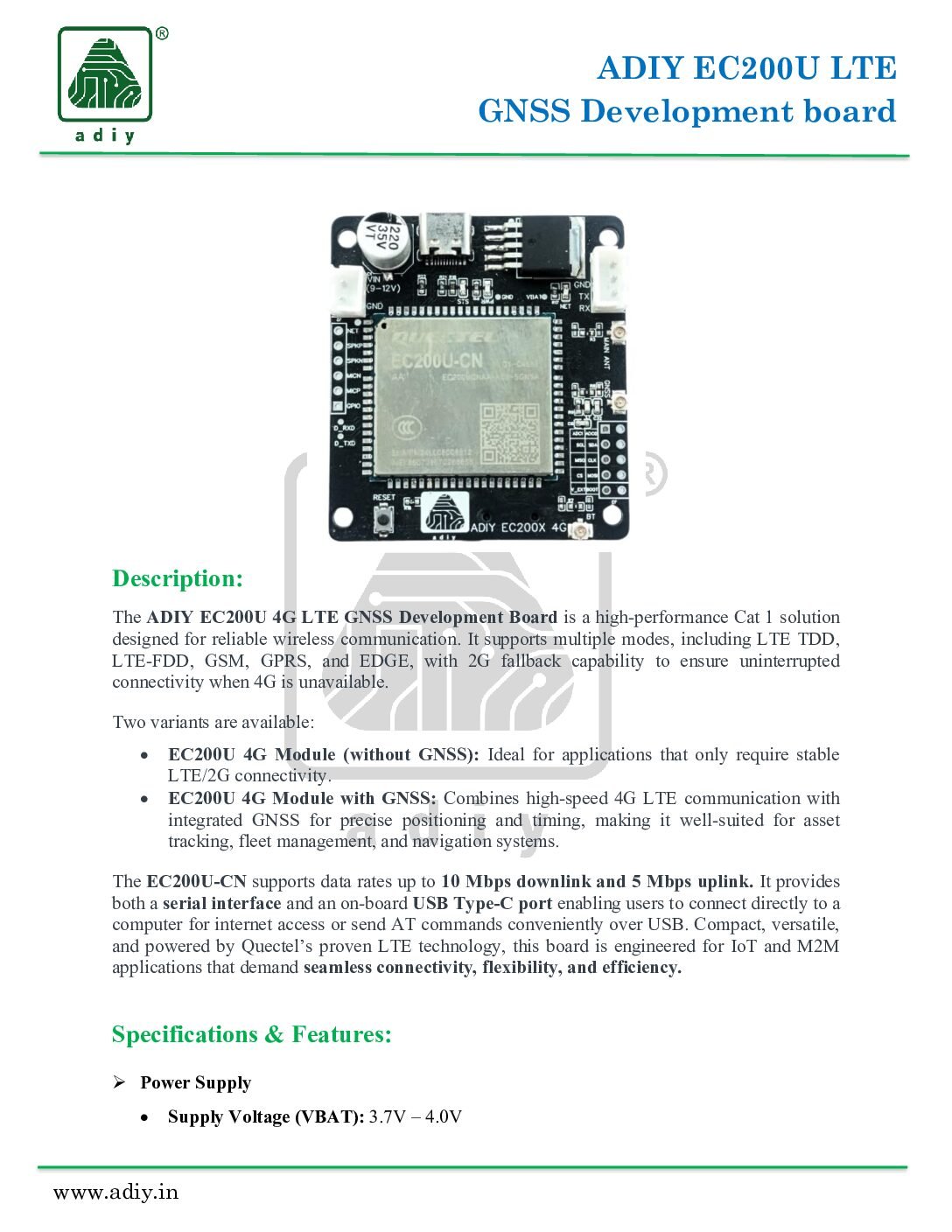

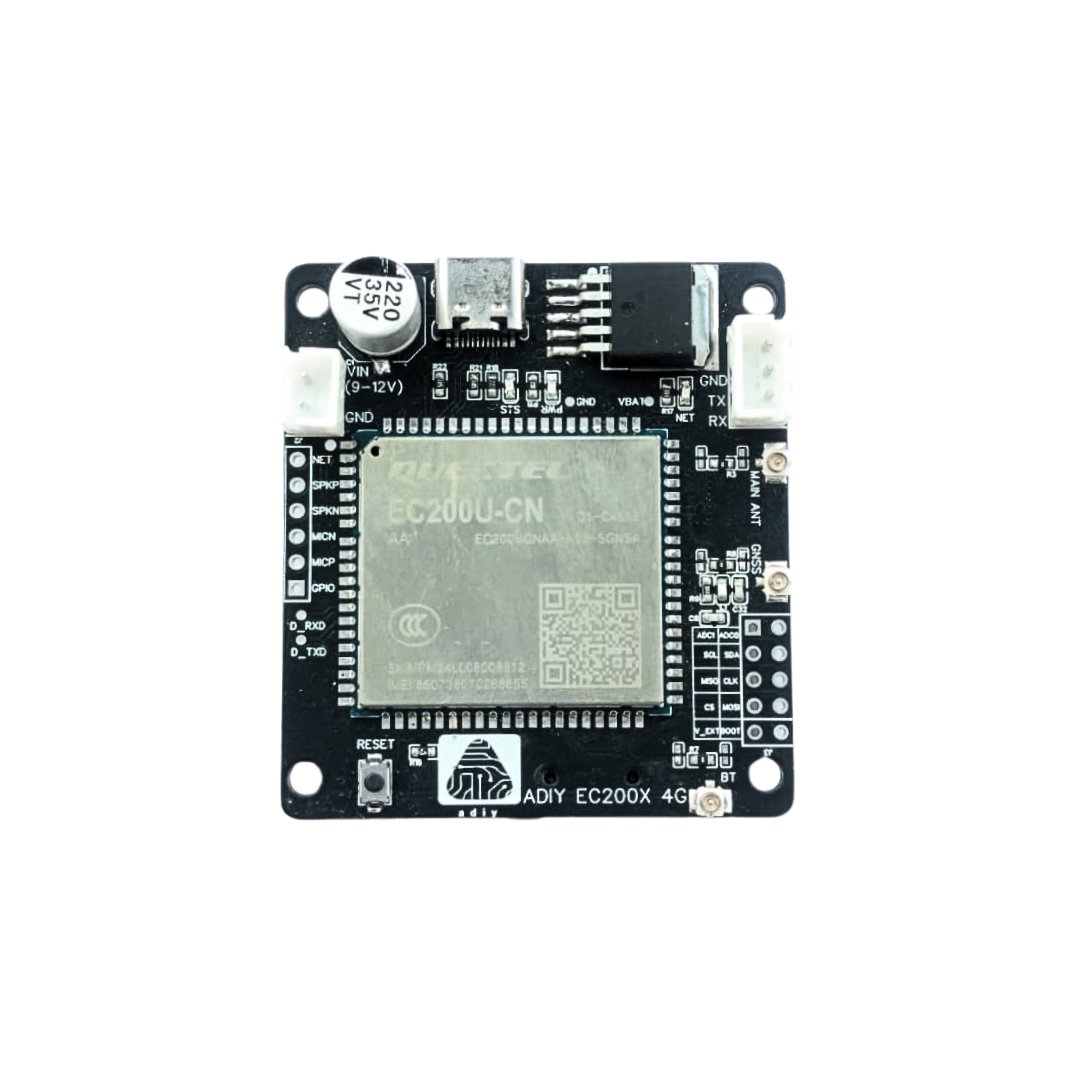

The ADIY EC200U 4G LTE GNSS Development Board is a high-performance Cat 1 solution designed for reliable wireless communication. It supports multiple modes, including LTE TDD, LTE-FDD, GSM, GPRS, and EDGE, with 2G fallback capability to ensure uninterrupted connectivity when 4G is unavailable.

Two variants are available: –

• EC200U 4G Module (without GNSS): Ideal for applications that only require stable LTE/2G connectivity.

• EC200U 4G Module with GNSS: Combines high-speed 4G LTE communication with integrated GNSS for precise positioning and timing, making it well-suited for asset tracking, fleet management, and navigation systems.

The EC200U-CN supports data rates up to 10 Mbps downlink and 5 Mbps uplink. It provides both a serial interface and an on-board USB Type-C port enabling users to connect directly to a computer for internet access or send AT commands conveniently over USB. Compact, versatile, and powered by Quectel’s proven LTE technology, this board is engineered for IoT and M2M applications that demand seamless connectivity, flexibility, and efficiency.

Specifications & Features:-
➢ Power Supply
• Supply Voltage (VBAT): 3.7V – 4.0V

• USB-C Input: 3.7V – 5.0V
• Typical Supply Voltage: 3.8V
➢ LTE Features
• Supports CAT 1 FDD & TDD
• Data Rates: 10 Mbps (Downlink), 5 Mbps (Uplink)
• Supported Bands:
o LTE-FDD: B1 / B3 / B5 / B8
o LTE-TDD: B34 / B38 / B39 / B40 / B41
o GSM/GPRS/EDGE: 900 / 1800 MHz
➢ Internet Protocols
• TCP, UDP, PPP, NTP, NITZ, FTP, HTTP, PING, CMUX
• HTTPS, FTPS, SSL, FILE, MQTT, MMS
• Powerful TCP/IP protocol stack for internet data transfer
➢ UART and USB Interface
• For AT command communication and data transmission
• Baud rates up to 921600 bps (default: 115200 bps)
➢ AT Commands
• Compliant with 3GPP TS 27.007 & TS 27.005
• Supports Quectel enhanced AT commands

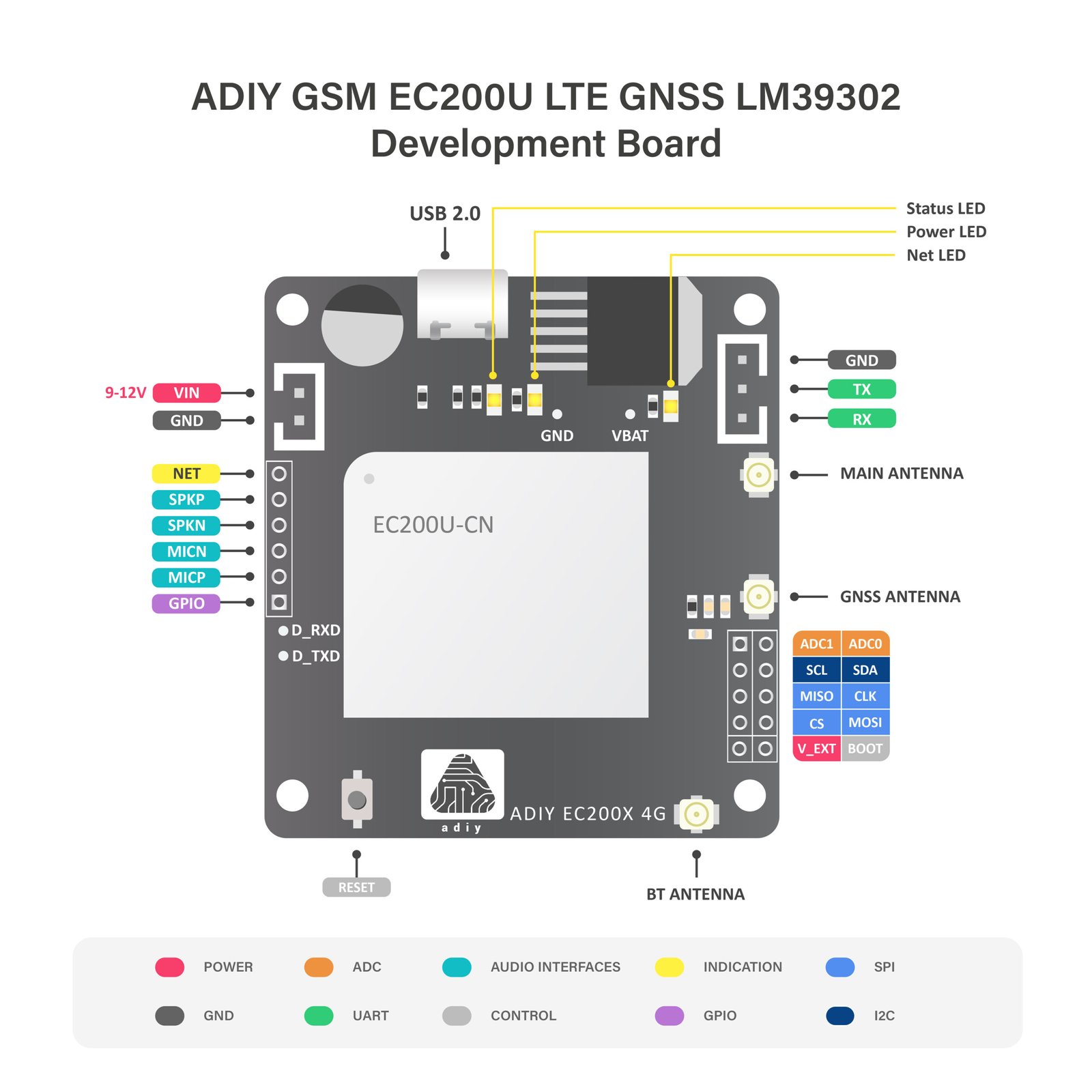

➢ Antenna Interfaces
• ANT_MAIN: LTE main antenna
• ANT_GNSS: GNSS antenna
• ANT_BT: Bluetooth antenna
• Connector: U.FL male for external antenna

➢ Additional Features
• Control via AT commands

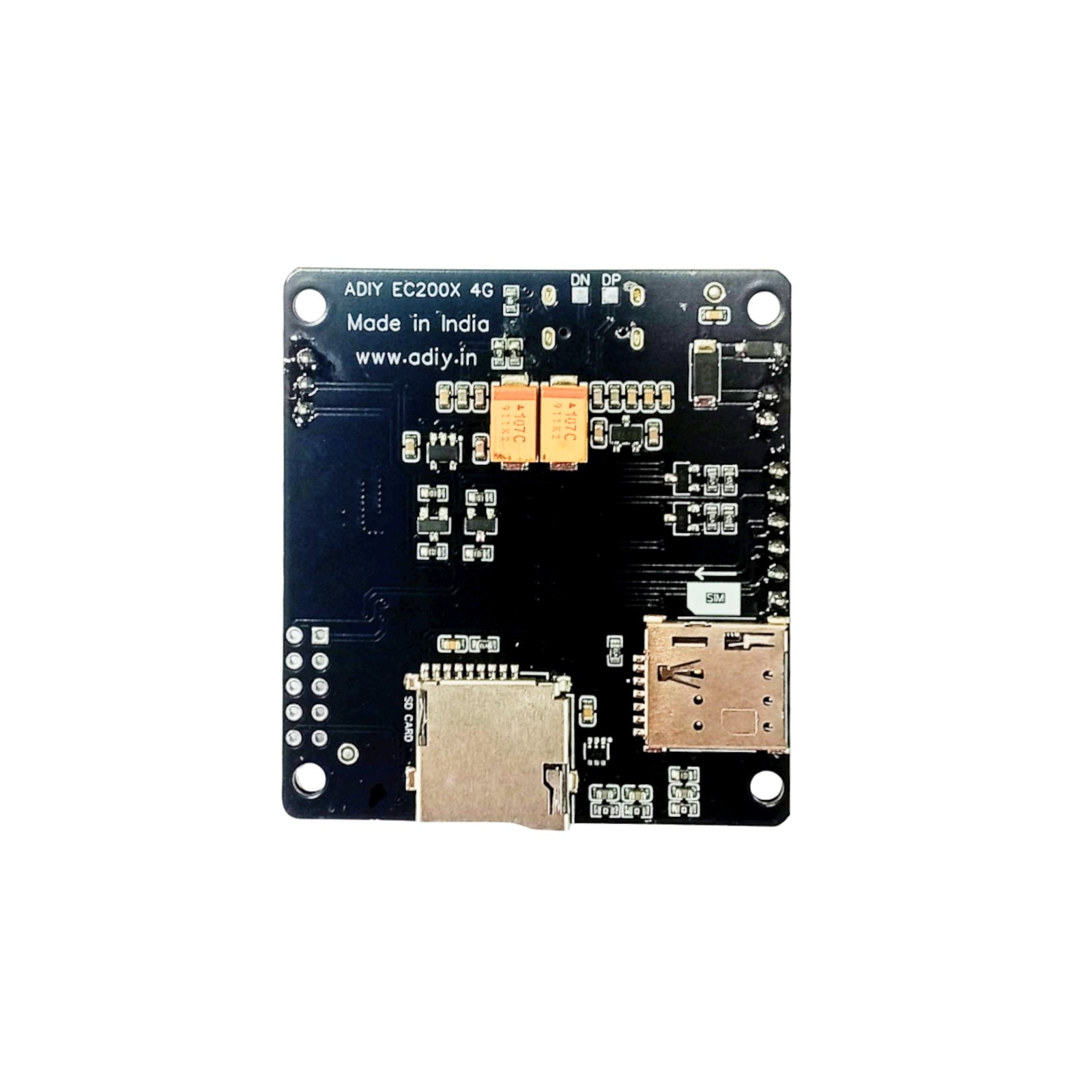

• Nano SIM card holder
• On-board logic level conversion for UART
• In-built TTS (Text-to-Speech) support
• LED Indicators: Power, Network, Status
• Software Functions: FOTA, LBS, SSL
• Ultra-low sleep current consumption: <25 mA
