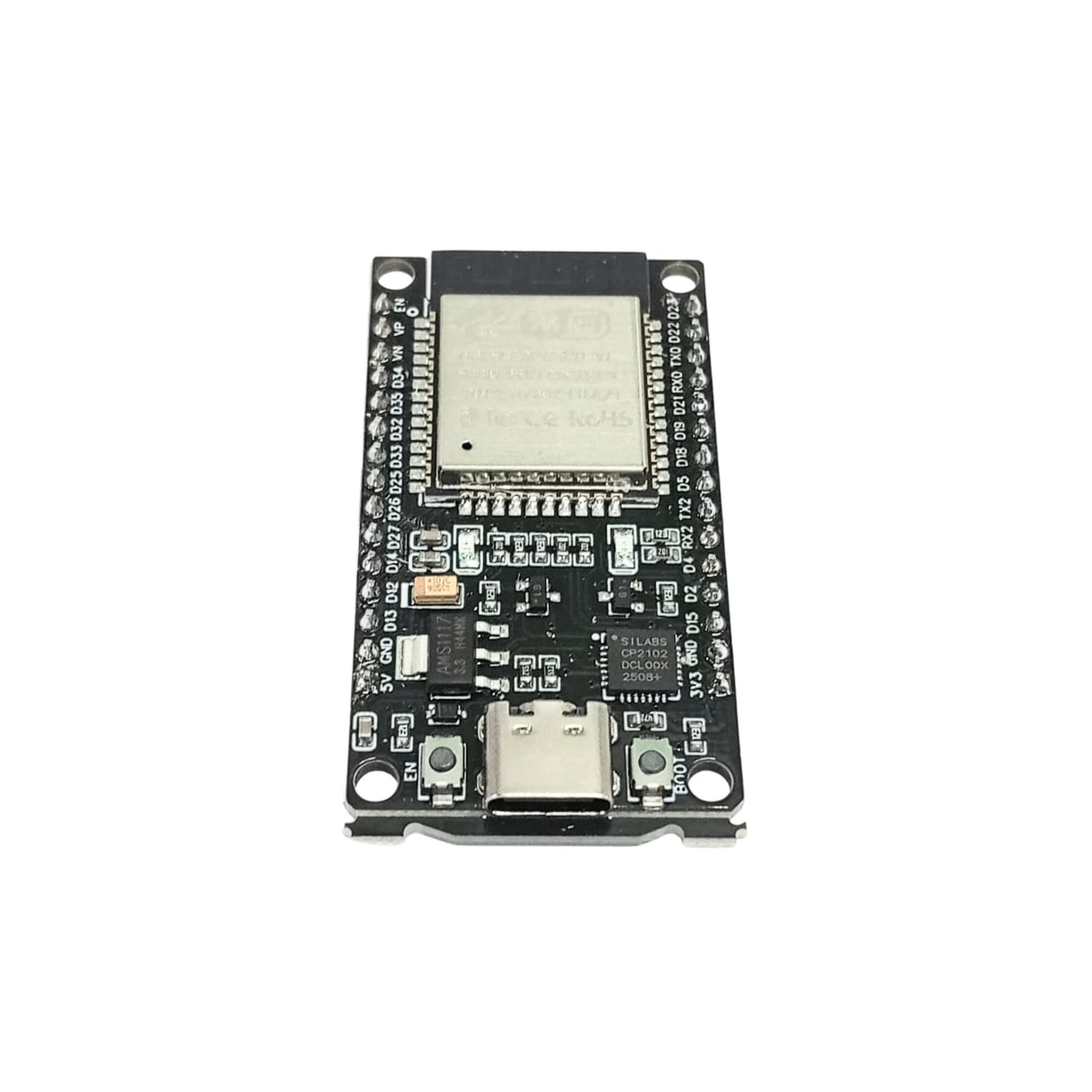

ESP32 Development Board (ESP32-WROOM-32D Module)

The ESP32 Development Board, powered by the ESP32-WROOM-32D Module, features the advanced ESP32 series microcontroller from Espressif. This versatile board is equipped with Wi-Fi, Bluetooth, and BLE capabilities, making it ideal for various applications.

Key Features: Nodemcu ESP32D Board

Microcontroller: ESP32 series, 32-bit dual-core MCU, designed for ultra-low power consumption and based on 40 nm technology.
Connectivity: Supports 802.11 b/g/n Wi-Fi, Bluetooth v4.2 BR/EDR, and BLE.
Memory: Available with 4 MB, 8 MB, or 16 MB Flash, and up to 512 KB RAM.
Operating Frequency: Capable of operating at up to 240 MHz.

This development board offers robust wireless connectivity and high performance, making it an excellent choice for your IoT and embedded system projects.

28 People watching this product now!

Description

ESP32 Development Board (ESP32-WROOM-32D Module)

The ESP32 Development Board is a powerhouse of performance and connectivity, featuring robust Wi-Fi and Bluetooth capabilities that open up a world of possibilities. Its compact 30-pin design allows seamless integration into various products, enabling endless creative options.

Key Features: Nodemcu ESP32D Board

Dual Wireless Modes: Supports AP, STA, and AP+STA modes for flexible IoT applications.
Development Ease: Lua programming support caters to both beginners and experts, making development a breeze.
Smooth Connectivity: Equipped with a CP2102 USB-UART bridge for effortless computer connectivity.
Powerful Chip: Powered by the ESP32D chip, designed for scalability and adaptability with dual CPU cores, adjustable clock frequencies, and a rich set of peripherals.

The ESP32 Development Board boasts a versatile range of peripherals, including touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C. With power consumption under 5µA, it’s perfect for wearable electronics and battery-powered applications.

Specifications: Nodemcu ESP32D Board

Microcontroller: ESP32 series, 32-bit dual-core MCU, ultra-low power, based on 40 nm technology.
Connectivity: 802.11 b/g/n Wi-Fi, Bluetooth v4.2 BR/EDR, and BLE.
Memory: 4/8/16 MB Flash, up to 512 KB RAM.
Operating Frequency: Up to 240 MHz.

Design and Interface: Nodemcu ESP32D Board

Pin Configuration: 30-pin board with accessible interfaces.
Ports: Type-C USB connector and USB to UART bridge.
User Controls: Reset and boot mode buttons.
Power Management: Equipped with an LDO regulator.
GPIO Access: Most essential GPIOs are readily accessible.

Versatility and Ease of Use:

Rapid Integration: Quickly add high-capacity Wi-Fi, Bluetooth, or BLE to existing projects.
Programming Support: Compatible with Lua scripting language for easier development.

Technical Details: Nodemcu ESP32D Board

Operating Voltage: 3.0 V ~ 3.6 V (Typical 3.3V)
Operating Current: Average 80 mA
Antenna: On-board PCB antenna
Wi-Fi Protocol: 802.11 b/g/n (802.11n up to 150 Mbps)
Bluetooth Protocols: Bluetooth v4.2 BR/EDR and Bluetooth LE
ROM: 448 KB
SRAM: 520 KB
Crystal: 40 MHz
SPI Flash: 4/8/16 MB
Operating Temperature Range: –40 °C ~ +85 °C

Module Interfaces: Nodemcu ESP32D Board

SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0).

Applications: Nodemcu ESP32D Board

Smart Home and Agriculture
Industrial Automation
Health Care
Consumer Electronics
Low-power IoT Sensor Hubs and IoT Data Loggers
Camera for Speech, Video, and Image Streaming
SDIO Wi-Fi + Bluetooth Networking Card
Touch and Proximity Sensing

Notice:

ESP32-WROOM-32D with a high-temperature range (–40 °C ~ +105 °C) option is available for custom order. 4 MB SPI flash is supported on the high-temperature range version.

Elevate your IoT projects with the ESP32 Development Board, designed to seamlessly integrate robust connectivity and high performance into your innovative solutions.
