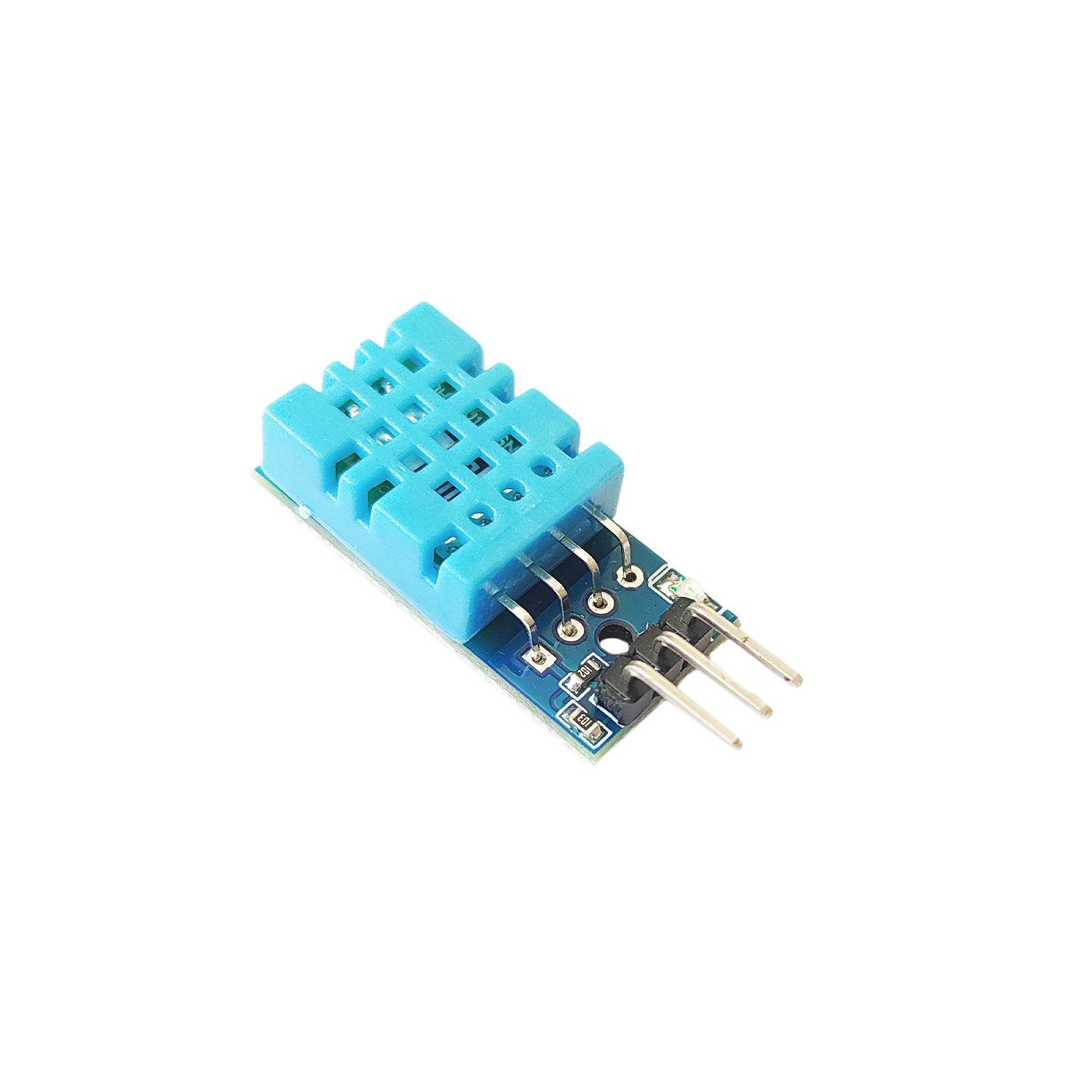

DHT11 Sensor – Humidity and Temperature Sensor

Description

DHT11 Sensor is an exceptional device renowned for its ability to accurately measure both humidity and temperature. With its reliable performance, affordability, and versatility, it has become a popular choice across a wide range of applications.

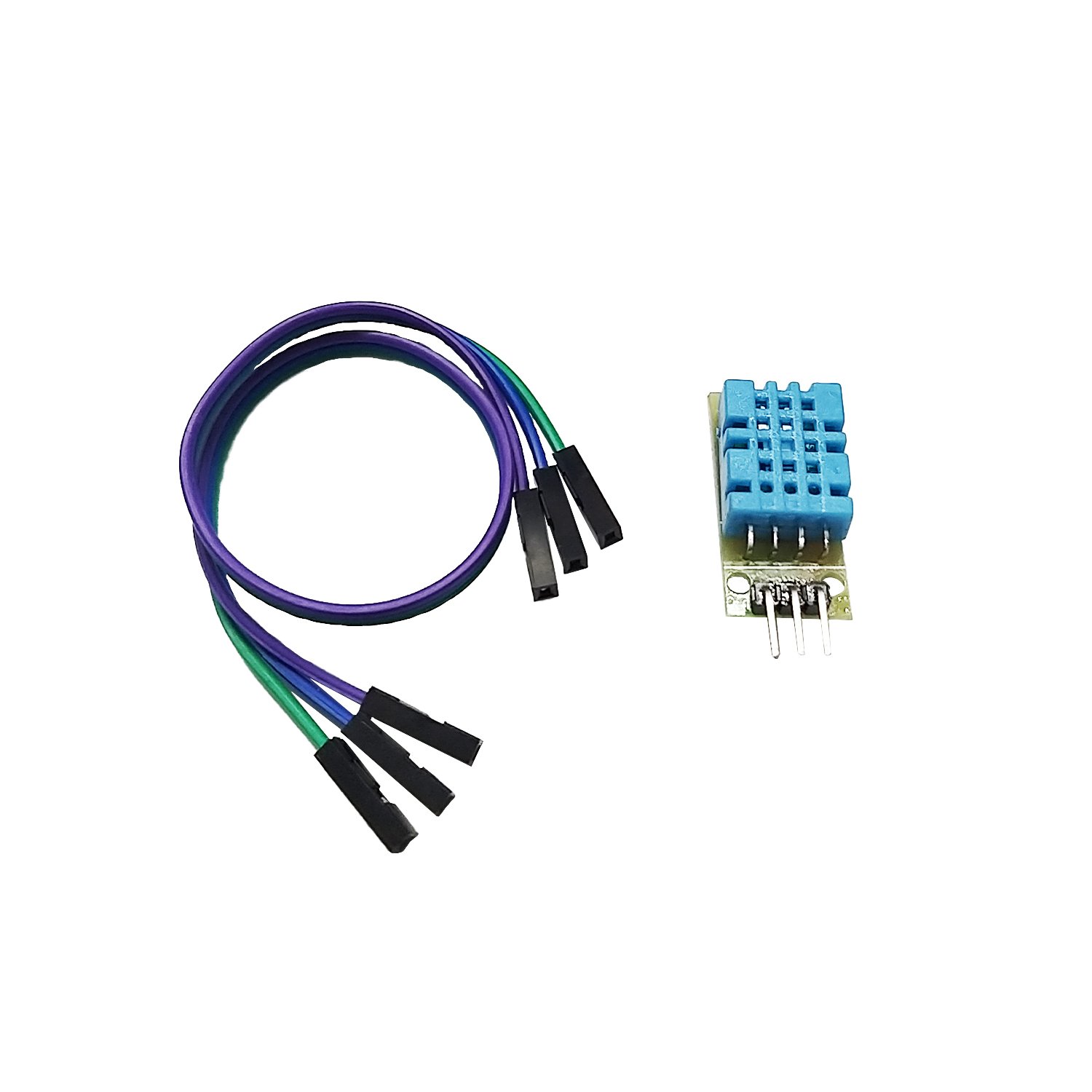

DHT11 Sensor With PCB is a basic, ultra-low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed). It is fairly simple to use but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds.

One of the key features of the DHT11 Sensor is its accuracy. It provides precise readings for both humidity and temperature, ensuring that the collected data is reliable and trustworthy. Whether you are monitoring the humidity levels in a greenhouse, controlling the temperature in a smart home, or conducting scientific experiments, the DHT11 Sensor delivers consistent and accurate measurements.

Specifications of the DHT11 Sensor:

1. Humidity Measurement Range: 20% to 90% RH (Relative Humidity)
2. Humidity Measurement Accuracy: ±5% RH
3. Temperature Measurement Range: 0°C to 50°C (32°F to 122°F)
4. Temperature Measurement Accuracy: ±2°C
5. Resolution: 1% RH (Humidity), 1°C (Temperature)
6. Operating Voltage: 3.3V to 5V DC
7. Current Consumption: 2.5mA max during conversion, 0.5mA during standby
8. Interface: Single-wire digital interface
9. Sampling Rate: 1 Hz (1 reading per second)
10. Response Time: <5 seconds for humidity, <2 seconds for temperature
11. Dimensions: Approximately 15.5mm x 12mm x 5.5mm
12. 4 pins with 0.1″ spacing
13. Weight: Approximately 1 gram
14. Compatibility: Compatible with various microcontrollers and development boards

Features of the DHT11 Sensor:

• Accurate Measurements
• Cost-Effective Solution
• Easy to Use
• Wide Application Range
• Low Power Consumption
• Stable and Reliable Performance
• Real-Time Data Updates
• Compact and Compact Size
• Low Complexity
• Longevity

The DHT11 Sensor has numerous applications across different industries and domains. Some of the common applications include:

• Smart Home Automation
• Weather Monitoring
• Agriculture and Greenhouse Management
• HVAC Systems
• Industrial Automation
• Food and Beverage Industry
• Medical and Healthcare
• Energy Efficiency Systems
• Research and Development
• Educational Projects

These applications represent just a few examples, highlighting the versatility of the DHT11 Sensor in various fields. Its affordability and ease of use make it accessible for both professional and DIY projects.

Resources

1. Usage Guide
2. DHT11 datasheet
