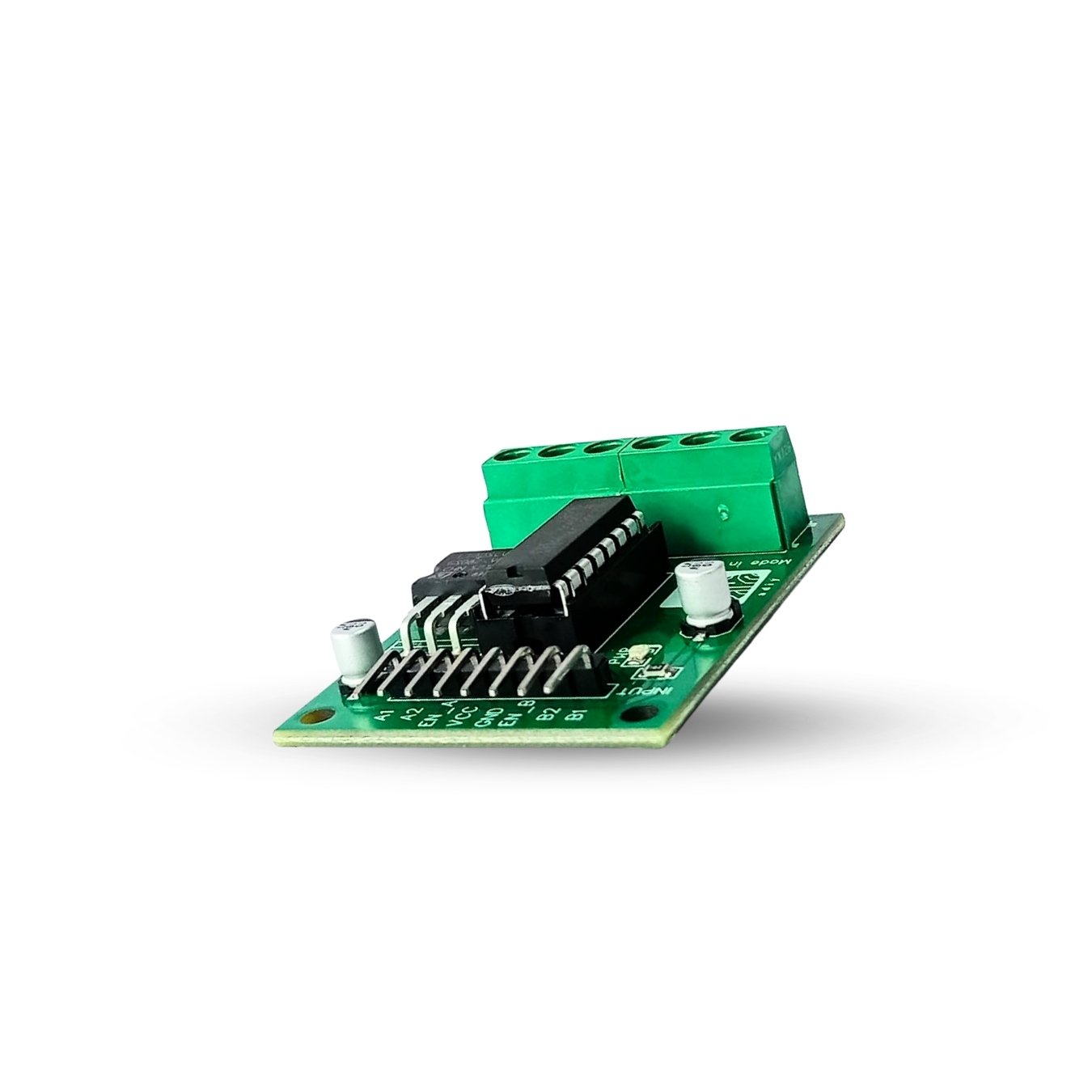

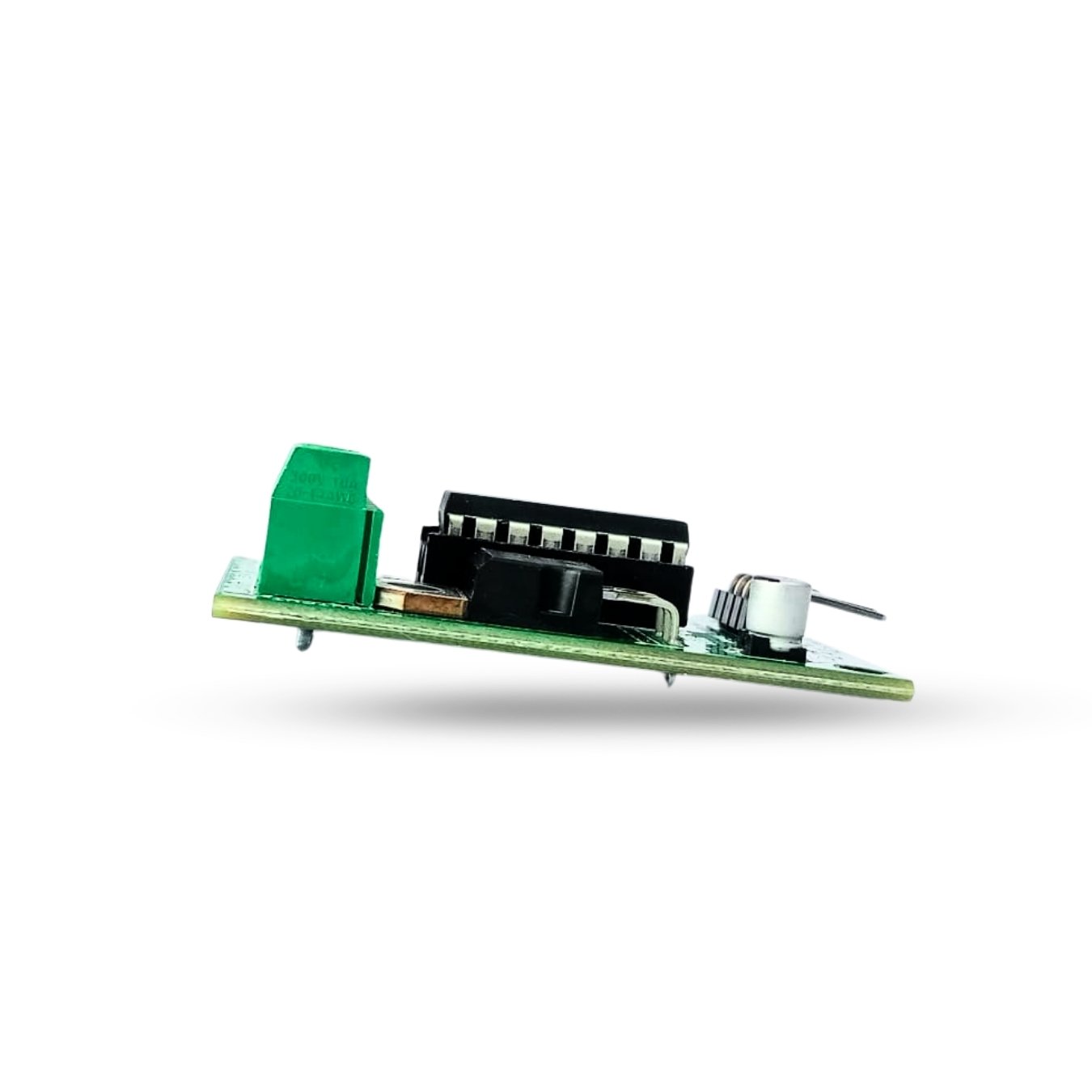

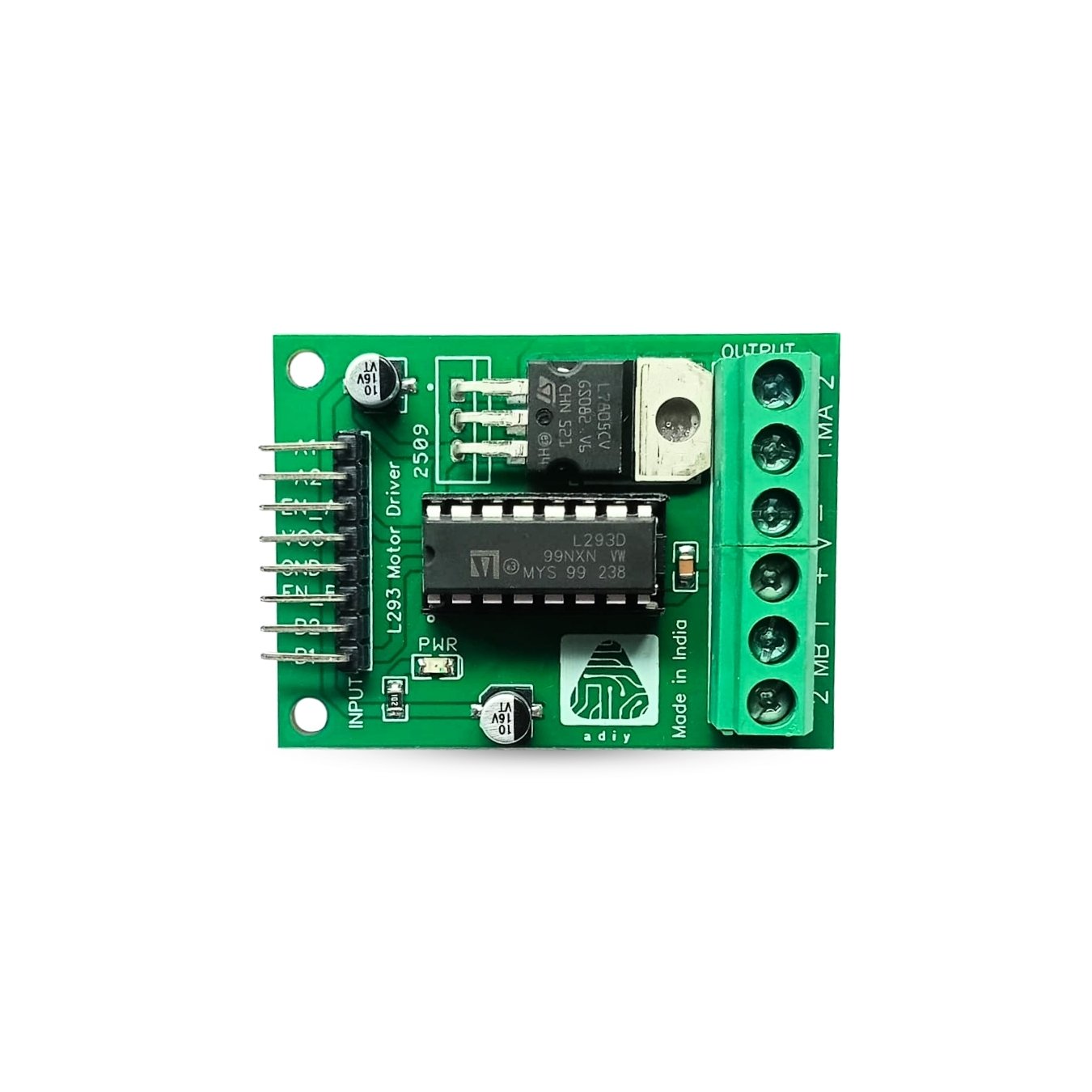

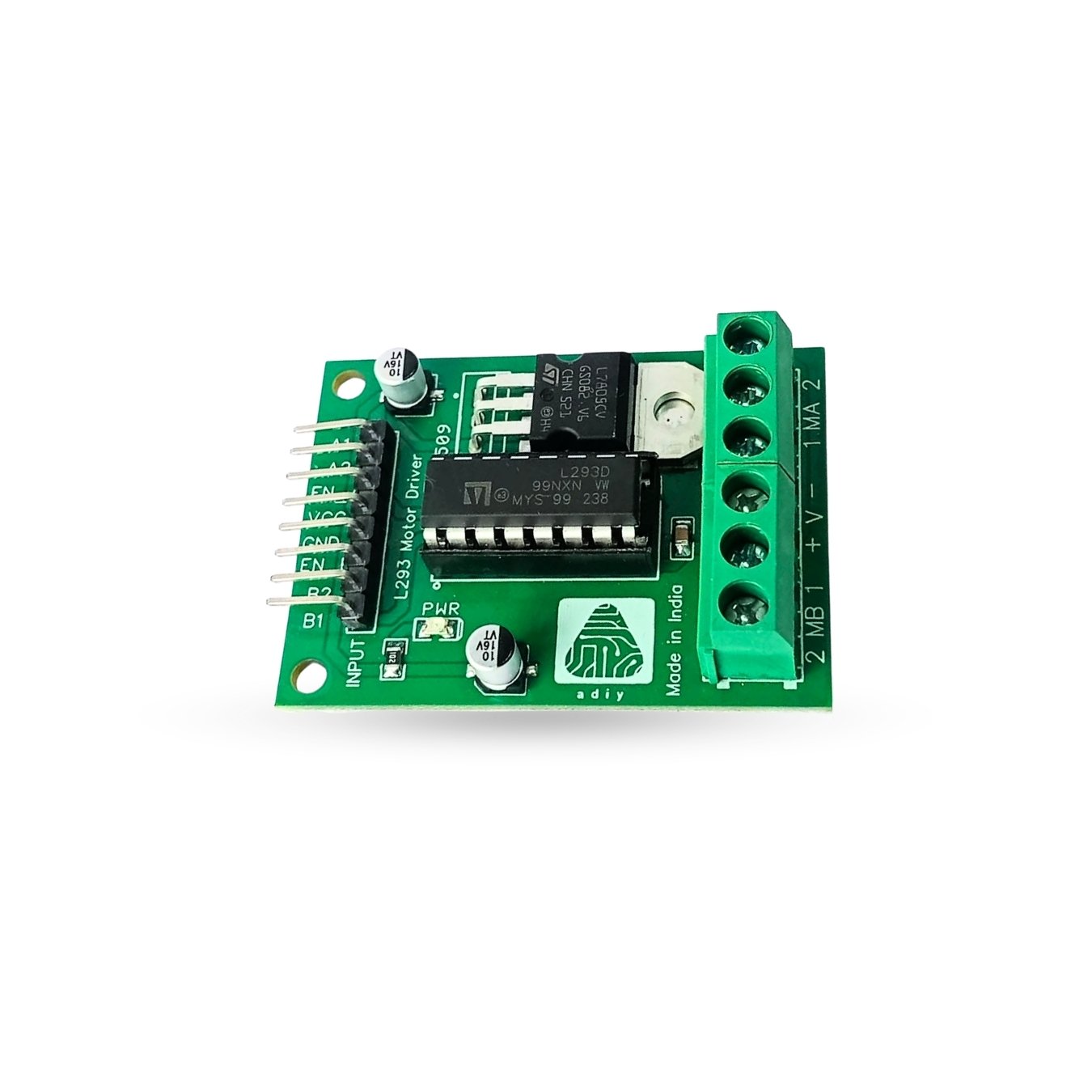

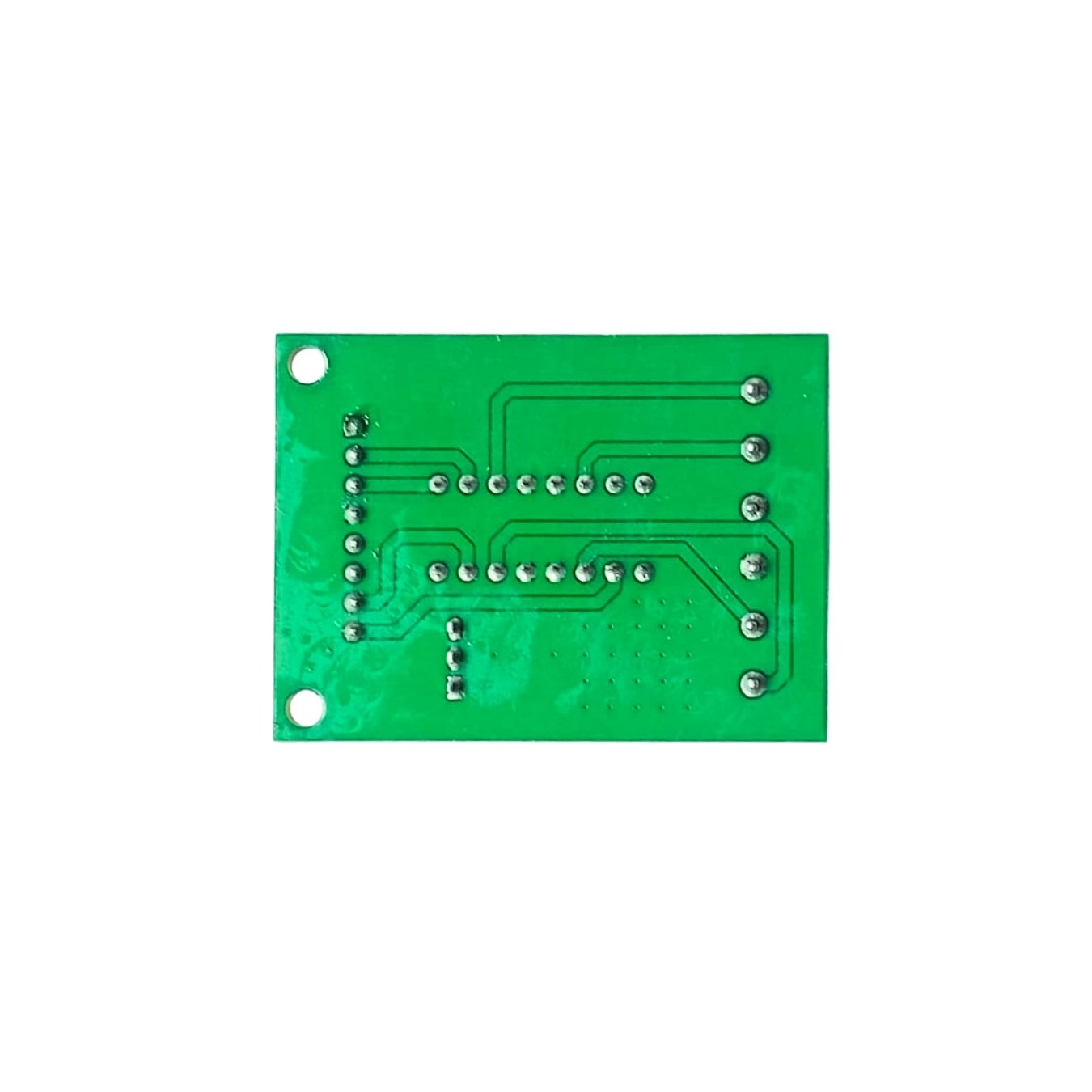

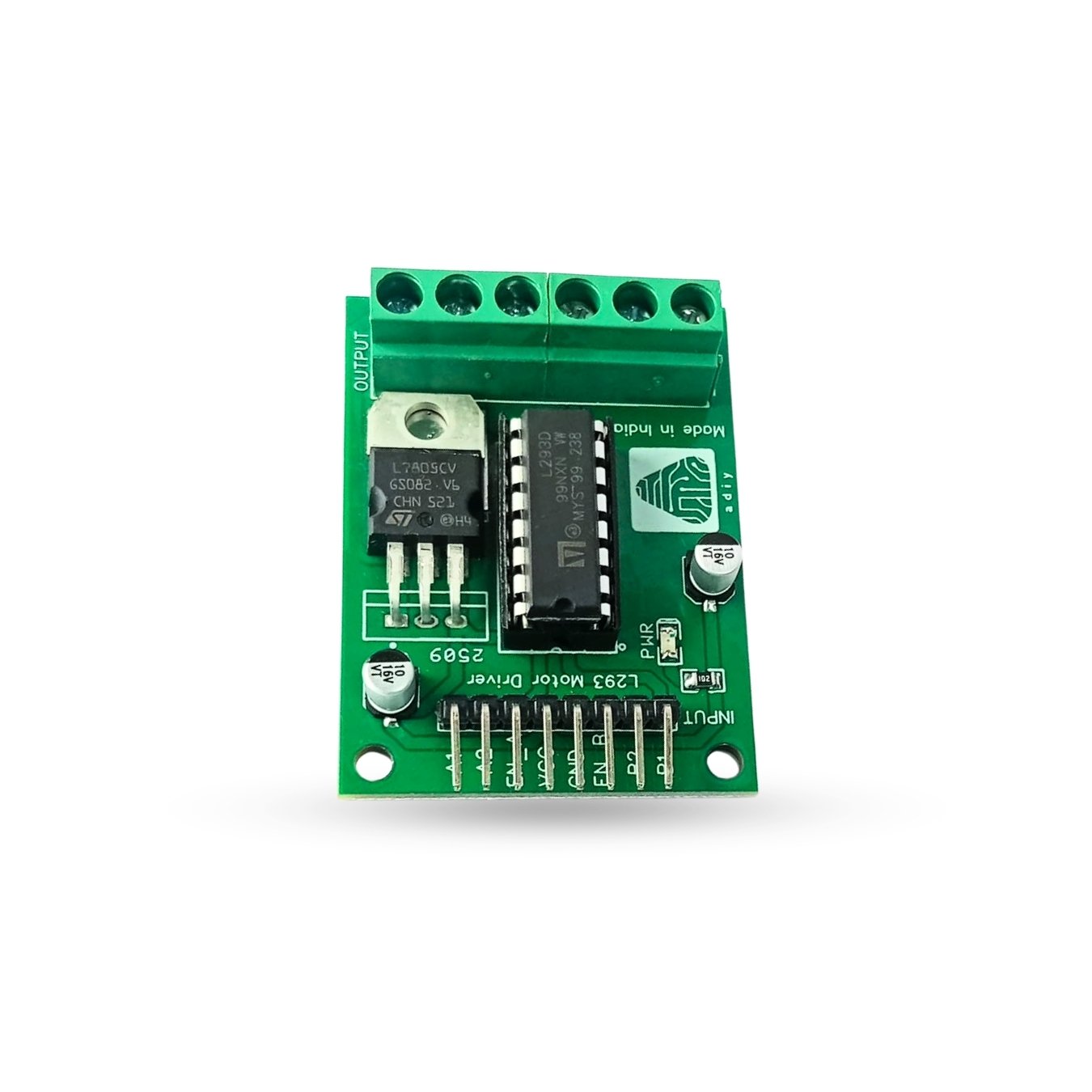

ADIY L293 Motor Driver with Voltage Regulator

This module is designed to be integrated with 2 relays that it is capable of controlling 2 devices. The L293D Motor Driver Module with LM7805 Regulator is a compact, dual-channel H-Bridge driver designed to control two DC motors forward & reverse independently. It integrates the L293D motor driver IC and a LM7805 voltage regulator, allowing users to power the motors with voltages form 8v up to 28V while supplying 5V logic to microcontrollers like Arduino, ESP32, and Raspberry Pi. This module is ideal for robotics, automation, and motor control projects.

Features:-

1. Wide Input Voltage Range: Mention the flexibility in input voltage (8V to 28V DC). This range supports a broad array of power sources, from small battery packs to larger power supplies.

2. Regulated 5V Output (LM7805): The LM7805 provides a stable 5V output for powering the logic side of the L293D, as well as other low-power 5V circuits.

3. Dual H-Bridge Motor Driver (L293D): The L293D can drive two DC motors independently. Each side is an H-Bridge, allowing for bidirectional control of the motors.

4. Built-In Protections: Both the L293D and LM7805 have thermal and current-limiting protection, so the module is more resilient to overload and overheating conditions.
