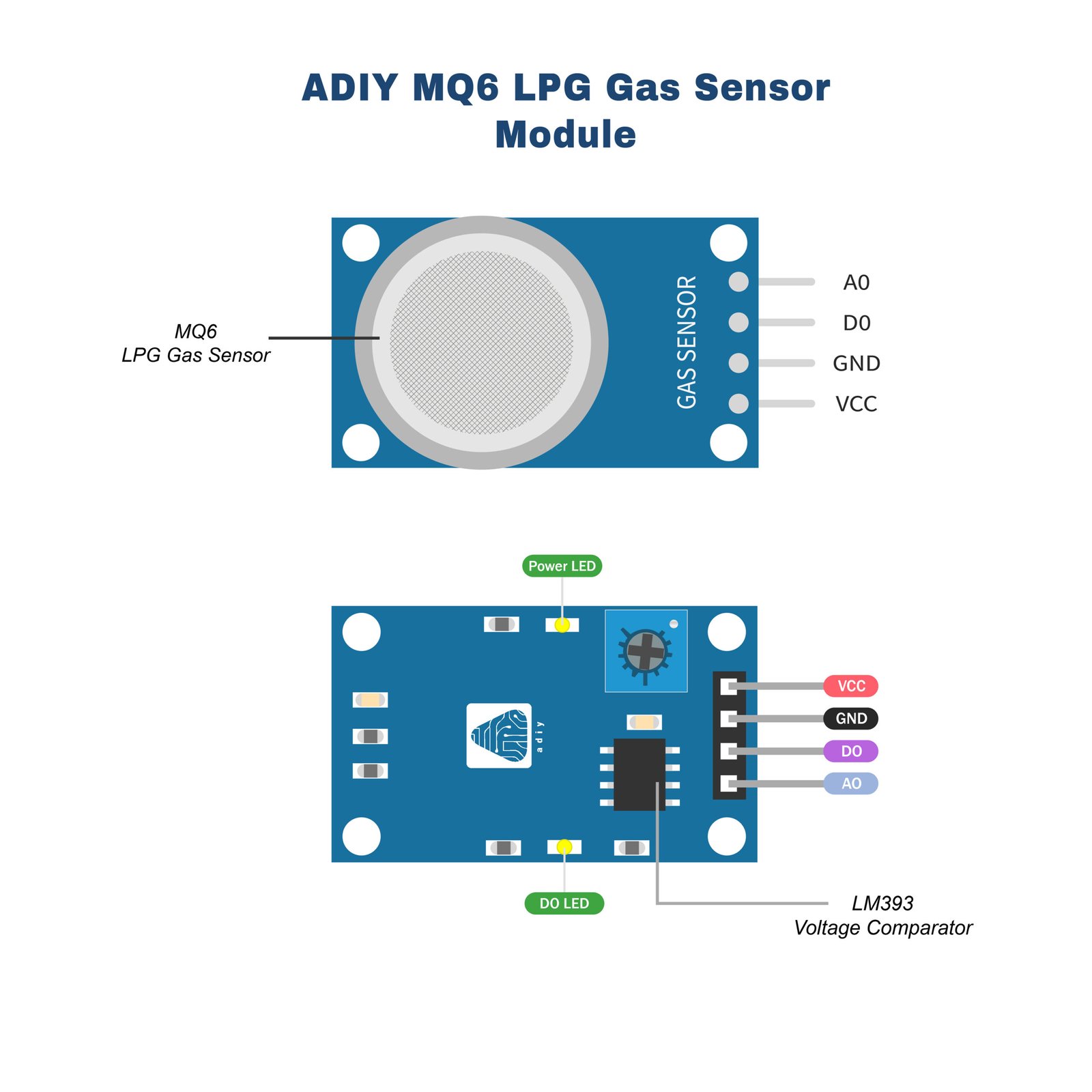

ADIY MQ6 Gas Sensor Module consists of liquefied petroleum gas (LPG) sensor, suitable for sensing LPG (composed of mostly propane and butane) concentrations in the air. The MQ-6 can detect gas concentrations anywhere from 200 to 10000ppm.
It provides an analog output corresponding to the concentration of the gases in the air and an easy-to-use digital output. The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered.
Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of the gas.
The digital output can be easily interfaced to microcontrollers and other circuits. The analog output can be hooked up to an ADC of a microcontroller to get a wide range of sensor reading.
Features and Specifications: Gas Sensor – MQ6
- 5V operation
- LEDs for output and power
- Output sensitivity adjustable
- Analog output 0V to 5V
- Digital output 0V or 5V
- Low Cost
- Fast Response
- Stable and Long Life
- Both Digital and Analog Outputs
